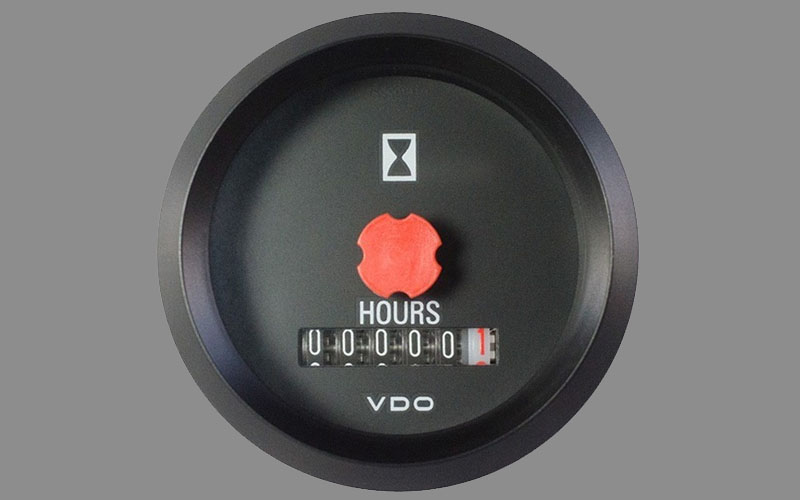

Engine hours counter 52 mm 12V with No Minute Hand
The Engine Hours Counter 52 mm 12V is a streamlined and efficient instrument designed to monitor engine runtime without a minute hand. Measuring 52 mm in diameter, it fits standard gauge openings and operates on 12V systems. This gauge provides precise tracking of total engine hours, offering essential information for maintenance and operational monitoring. Its simple design, lacking a minute hand, ensures a clear and straightforward display, making it easy to read and interpret the engine's total operating time. Ideal for vehicles and machinery, this counter helps keep maintenance on schedule and ensures optimal engine performance.
Specification:
- Colour: Black
- Panel hole diameter: 52 mm - 2 1/16"
- Range: 99999.9 hour
- Operating voltage: 12 Volt DC
- Retail package 1 Engine hours counter
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: |
52 mm - 2 1/16 Inch en 59.25 mm - 2 1/3 Inch |
| Installation depth: |
53 mm |
| Locking height with Spinlock nut: |
0.5 mm - 20 mm |
| Locking height with bracket: |
Not available |
| Flushmount: |
None |
Functionality:
| EHC Measurement range: |
0 - 99999.9 Hours |
| Signal input engine hours counter (EHC): |
Plus ignition switch |
| Accuracy: |
± 5s per day at room temperature |
| Connection: |
AMP Male blade connector 6,3 x 0,8mm (2x) |
| Illumination connection: |
None |
Power supply:
| Operating voltage: |
11 - 16 Volt DC |
| Current consumption without illumination: |
< 10 mA |
| Reverse polarity protection: |
Yes |
| Short circuit protection: |
Not specified by VDO |
Dial & Pointer:
| Dial: |
6 Digits |
| Dial colour: |
Black |
| Dial Illumination: |
None |
| Digits: |
White |
| Warning indication: |
None |
| Programming: |
None |
Design:
| Model: |
Cockpit International |
| Lens: |
Single - Anti-glare |
| Standard bezel: |
Triangular black (Threaded ring) |
Protection and standards:
| Front protection class: |
IP64 (DIN 40050) - Ozon proof - UV proof |
| Rear protection class: |
IP42 (DIN 40050) |
| Relative humidity: |
Not specified by VDO |
| Operating temperature: |
-30°C to +85°C |
| CE standard: |
Yes |
| DNV GL Certification: |
Not specified by VDO |
| Mechanical shock 8 hours: |
Max: 1G - 25Hz - 2000Hz |
| EMC test: |
According to EN 13309 and ISO 13766 |
| Nominal position: |
NL 0 to NL 90 - DIN 16257 |
| Housing: |
Plastic flame retardant |
Retail package:
- VDO Cockpit International 331 810 012 001G Engine hours counter
- Spinlock nut
- Connecting material order separately
