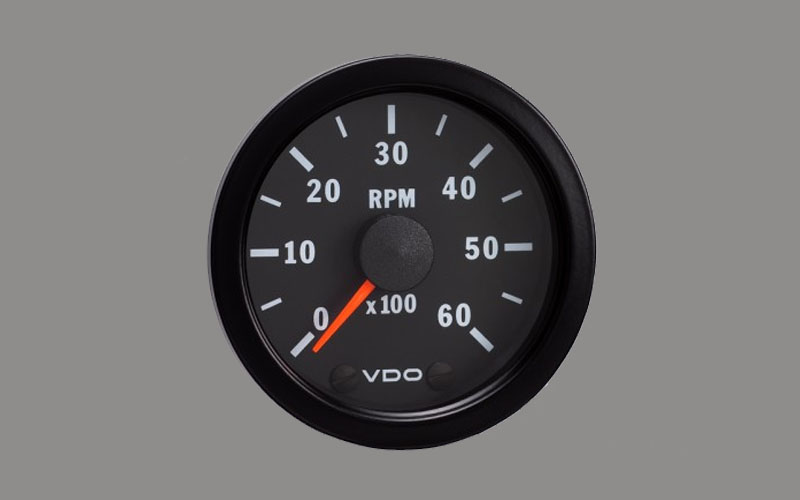

Vision Tachometer 6000 RPM Gauge
The VDO Vision Tachometer 6000 RPM Gauge is a sophisticated instrument designed for precise engine RPM measurement up to 6000 revolutions per minute. Featuring a sleek, high-contrast display, this tachometer provides clear and accurate readings, essential for monitoring engine performance in both automotive and marine applications. Its modern design and durable construction ensure reliability and longevity, even under demanding conditions. The VDO Vision Tachometer 6000 RPM Gauge is an essential tool for optimizing engine operation and enhancing overall performance.
Specification:
- Colour: Black
- Panel hole diameter: 52 mm - 2 1/16"
- Range: 0 to 6.000 RPM
- Operating voltage: 12 Volt DC
- Retail package 1 Tachometer
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: |
52 mm - 2 1/16 Inch en 59.25 mm - 2 1/3 Inch |
| Installation depth: |
91 mm |
| Locking height with Spinlock nut: |
Optional 0.5 mm - 23 mm |
| Locking height with bracket: |
0.5 mm - 12 mm |
| Flushmount: |
None |
Functionality:
| Analog RPM measurement range: |
0 to 6.000 RPM |
| Sensor signal tachometer: |
Alternator terminal: W
Ignition terminal: 1 |
| Accuracy: |
Not specified by VDO |
| Connection: |
AMP Male blade connector 6,3 x 0,8mm (4x) |
| Illumination connection: |
AMP Male blade connector 6,3 x 0,8mm (2x) |
Power supply:
| Operating voltage: |
11 - 16 Volt DC |
| Current consumption without illumination: |
< 100 mA |
| Reverse polarity protection: |
Yes |
| Short circuit protection: |
Not specified by VDO |
Dial & Pointer:
| Deflection angle: |
320° |
| Dial colour: |
Black |
| Dial Illumination: |
Backlight Double 12V - 2 Watt White - Green - Red and 24V - 2 Watt - Optional |
| Pointer: |
Red backlight |
| Warning indication: |
None |
| Programming: |
Yes |
Design:
| Model: |
Cockpit Vision |
| Lens: |
Single - Anti-glare |
| Standard bezel: |
Triangular black (Threaded ring) |
Protection and standards:
| Front protection class: |
IP64 (DIN 40050) - Ozon proof - UV proof |
| Rear protection class: |
IP42 (DIN 40050) |
| Relative humidity: |
Not specified by VDO |
| Operating temperature: |
-20°C to +70°C |
| CE standard: |
Yes |
| DNV GL Certification: |
Not specified by VDO |
| Mechanical shock 8 hours: |
Max: 1G - 25Hz - 2000Hz |
| EMC test: |
According to EN 13309 and ISO 13766 |
| Nominal position: |
NL 0 to NL 90 - DIN 16257 |
| Housing: |
Plastic flame retardant |
Retail package:
- VDO Cockpit Vision 333 015 009K Tachometer
- 2 x Steel bracket zinc-plated and chromatized
- Connecting material order separately
