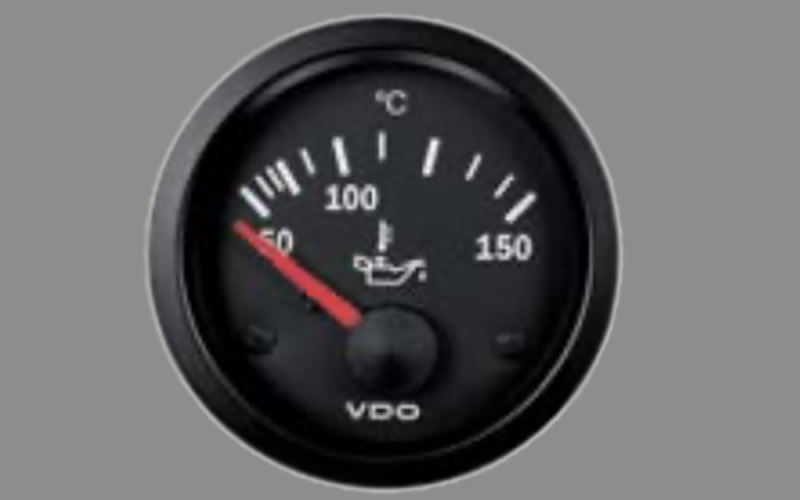

Vision Engine Oil Temperature Gauge 150°C

The VDO Vision Engine Oil Temperature Gauge 150°C is a precise instrument designed to measure engine oil temperature up to 150 degrees Celsius. It features a clear, easy-to-read display that provides accurate and reliable readings, essential for monitoring and maintaining optimal engine performance. Ideal for both automotive and marine applications, this gauge helps prevent overheating and ensures efficient engine operation. With its sleek design and durable construction, the VDO Vision Engine Oil Temperature Gauge 150°C is an indispensable tool for ensuring the health and longevity of your engine.



Specification:

  • Colour: Black
  • Panel hole diameter: 52 mm - 2 1/16"
  • Range: +50°C to +150°C
  • Operating voltage: 12 Volt DC
  • Retail package 1 Temperature gauge

Sizes and mounting:

Installation (Hole) diameter and Outside diameter: 52 mm - 2 1/16 Inch en 59.25 mm - 2 1/3 Inch
Installation depth: 61 mm
Locking height with Spinlock nut: 0.5 mm - 23 mm
Locking height with bracket: Not available
Flushmount: None

Functionality:

Engine oil temperature range: +50°C to +150°C
Sensor signal engine oil temperature gauge: VDO NTC Thermistor 322.8 - 18.6 Ohm
Accuracy: Not specified by VDO
Connection: AMP Male blade connector 6,3 x 0,8mm (3x)
Illumination connection: AMP Male blade connector 6,3 x 0,8mm (2x)

Power supply:

Operating voltage: 21.5 - 30 Volt DC
Current consumption without illumination: 131 mA
Reverse polarity protection: Yes
Short circuit protection: Not specified by VDO

Dial & Pointer:

Deflection angle: 90°
Dial colour: Black
Dial Illumination: Backlight 12V - 2 Watt White - Green - Red and 24V - 2 Watt - Optional
Pointer: Red backlight
Warning indication: None
Programming: None

Design:

Model: Cockpit Vision
Lens: Single - Anti-glare
Standard bezel: Triangular black (Threaded ring)

Protection and standards:

Front protection class: IP64 (DIN 40050) - Ozon proof - UV proof
Rear protection class: IP42 (DIN 40050)
Relative humidity: Not specified by VDO
Operating temperature: -30°C to +85°C
CE standard: Yes
DNV GL Certification: Not specified by VDO
Mechanical shock 8 hours: Max: 1G - 25Hz - 2000Hz
EMC test: According to EN 13309 and ISO 13766
Nominal position: NL 0 to NL 90 - DIN 16257
Housing: Plastic flame retardant

Retail package:

  • VDO Cockpit Vision 310 010 013K Temperature gauge
  • Stud bolts
  • Connecting material order separately
