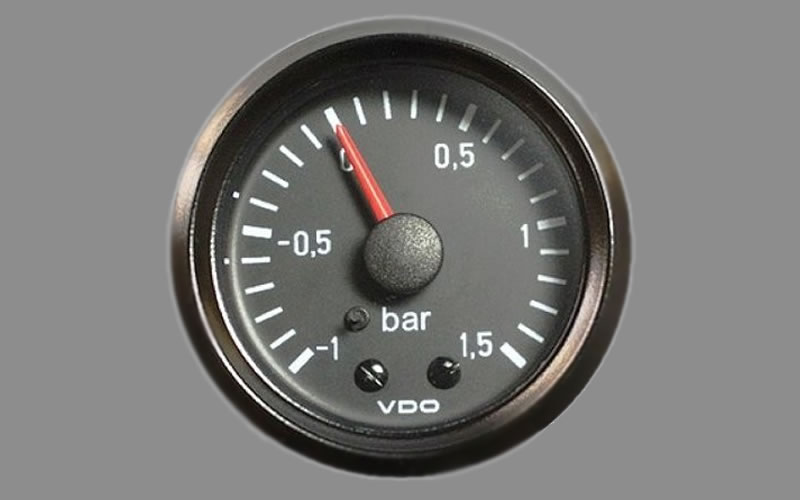

Turbo Boost Gauge -1 tot 1.5Bar
The VDO Turbo Boost Gauge -1 to 1.5 Bar is a precision instrument designed to measure turbocharger boost pressure within a range of -1 to 1.5 Bar. It features a clear, easy-to-read display, ensuring accurate and reliable readings essential for monitoring turbo performance. Ideal for high-performance and turbocharged vehicles, this gauge helps optimize engine efficiency and prevent overboost issues. With its robust construction and sleek design, the VDO Turbo Boost Gauge -1 to 1.5 Bar is a crucial tool for maintaining optimal engine performance and health.
Specification:
- Colour: Black
- Panel hole diameter: 52 mm - 2 1/16"
- Range: -1 to 1.5 Bar Mechanical
- Connection: M12 x 1.5
- Retail package 1 Pressue gauge
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: |
52 mm - 2 1/16 Inch en 59.25 mm - 2 1/3 Inch |
| Installation depth: |
67.5 mm |
| Locking height with Spinlock nut: |
Not available |
| Locking height with bracket: |
0.5 mm - 8 mm |
| Flushmount: |
None |
Functionality:
| Vacuüm measurement range: |
-1 to 1.5 Bar |
| Sensor signal vacuum gauge: |
Mechanical - Connection M12 x 1.5 |
| Accuracy: |
Not specified by VDO |
| Connection: |
M12 x 1.5 |
| Optional illumination connection: |
AMP Male blade connector 6,3 x 0,8mm (2x) |
Power supply:
| Operating voltage (Illumination only): |
12 Volt standard - 24 Volt optional |
| Current consumption (Illumination only): |
12 Volt 2 Watt - 24 Volt 2 Watt |
| Reverse polarity protection: |
Not applicable |
| Short circuit protection: |
Not applicable |
Dial & Pointer:
| Deflection angle: |
90° |
| Dial colour: |
Black |
| Dial Illumination: |
Optional Floodlight 12V - 3.4 Watt White - Green - Red and 24V - 3 Watt |
| Pointer: |
Red backlight |
| Warning indication: |
None |
| Programming: |
None |
Design:
| Model: |
Cockpit International |
| Lens: |
Single - Anti-glare |
| Standard bezel: |
Triangular black (Threaded ring) |
Protection and standards:
| Front protection class: |
IP64 (DIN 40050) - Ozon proof - UV proof |
| Rear protection class: |
IP42 (DIN 40050) |
| Relative humidity: |
Not specified by VDO |
| Operating temperature: |
-30°C to +85°C |
| CE standard: |
Yes |
| DNV GL Certification: |
Not specified by VDO |
| Mechanical shock 8 hours: |
Max: 1G - 25Hz - 2000Hz |
| EMC test: |
According to EN 13309 and ISO 13766 |
| Nominal position: |
NL 0 to NL 90 - DIN 16257 |
| Housing: |
Plastic flame retardant |
Retail package:
- VDO Cockpit International 150 035 001G Pressure gauge
- Steel bracket zinc-plated and chromatized
- Connecting material order separately
