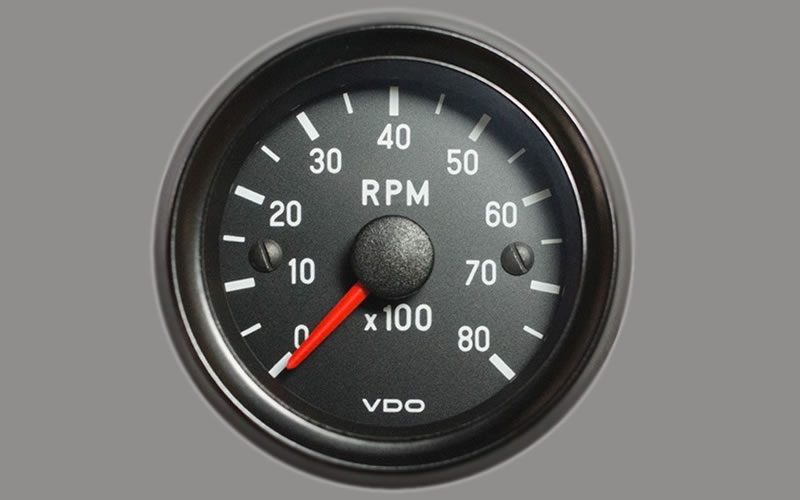

Tachometer 8000 RPM Gauge
The VDO Tachometer 8000 RPM Gauge is a high-performance instrument designed to measure engine RPM up to 8000 revolutions per minute. It features a clear, easy-to-read display for accurate and reliable monitoring of engine speed. Ideal for high-performance and racing vehicles, this tachometer combines a sleek design with robust construction to handle demanding conditions. The VDO Tachometer 8000 RPM Gauge is essential for optimizing engine performance and preventing over-revving in high-speed applications.
Specification:
- Colour: Black
- Panel hole diameter: 52 mm - 2 1/16"
- Range: 0 to 8.000 RPM
- Operating voltage: 12 Volt DC
- Retail package 1 Tachometer
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: |
52 mm - 2 1/16 Inch en 59.25 mm - 2 1/3 Inch |
| Installation depth: |
83 mm |
| Locking height with Spinlock nut: |
Optional 0.5 mm - 23 mm |
| Locking height with bracket: |
0.5 mm - 8 mm |
| Flushmount: |
None |
Functionality:
| Analog RPM measurement range: |
0 to 8.000 RPM |
| Sensor signal tachometer: |
Alternator terminal: W
Ignition terminal: 1 |
| Accuracy: |
Not specified by VDO |
| Connection: |
AMP Male blade connector 6,3 x 0,8mm (4x) |
| Illumination connection: |
AMP Male blade connector 6,3 x 0,8mm (2x) |
Power supply:
| Operating voltage: |
11 - 16 Volt DC |
| Current consumption without illumination: |
< 100 mA |
| Reverse polarity protection: |
Yes |
| Short circuit protection: |
Not specified by VDO |
Dial & Pointer:
| Deflection angle: |
320° |
| Dial colour: |
Black |
| Dial Illumination: |
Floodlight 12V - 3.4 Watt White - Green - Red and 24V - 3 Watt - Optional |
| Pointer: |
Red backlight |
| Warning indication: |
None |
| Programming: |
Yes |
Design:
| Model: |
Cockpit International |
| Lens: |
Single - Anti-glare |
| Standard bezel: |
Triangular black (Threaded ring) |
Protection and standards:
| Front protection class: |
IP64 (DIN 40050) - Ozon proof - UV proof |
| Rear protection class: |
IP42 (DIN 40050) |
| Relative humidity: |
Not specified by VDO |
| Operating temperature: |
-20°C to +70°C |
| CE standard: |
Yes |
| DNV GL Certification: |
Not specified by VDO |
| Mechanical shock 8 hours: |
Max: 1G - 25Hz - 2000Hz |
| EMC test: |
According to EN 13309 and ISO 13766 |
| Nominal position: |
NL 0 to NL 90 - DIN 16257 |
| Housing: |
Plastic flame retardant |
Retail package:
- VDO Cockpit International 333 035 018G Tachometer
- Steel bracket zinc-plated and chromatized
- Connecting material order separately
