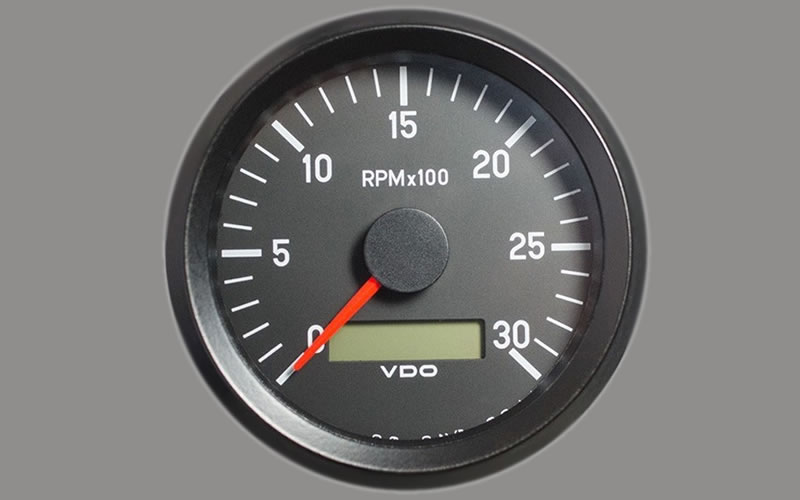

Tachometer 3000 RPM Gauge
The VDO Tachometer 3000 RPM Gauge is a precise instrument designed to measure engine RPM up to 3000 revolutions per minute. It features a clear, easy-to-read display, providing accurate and reliable readings to help manage engine performance and prevent over-revving. Its sleek and durable design makes it suitable for various automotive applications. The VDO Tachometer 3000 RPM Gauge is essential for monitoring engine speed and ensuring smooth and efficient operation.
Specification:
- Colour: Black
- Panel hole diameter: 80 mm - 3 1/8"
- Range: 0 to 3.000 RPM
- Operating voltage: 12-24 Volt DC
- Retail package 1 Tachometer
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: |
80 mm - 3 1/8 Inch en 85 mm - 3 1/3 Inch |
| Installation depth: |
91 mm |
| Locking height with Spinlock nut: |
Optional 0.5 mm - 23 mm |
| Locking height with bracket: |
0.5 mm - 12 mm |
| Flushmount: |
None |
Functionality:
| Analog RPM measurement range: |
0 to 3.000 RPM |
| Display functionality: |
Engine hours counter |
| Sensor signal tachometer: |
Alternator terminal: W
Ignition terminal: 1 |
| Accuracy: |
Not specified by VDO |
| Connection: |
8-Pole AMP Male blade connector 6,3 x 0,8mm |
| Illumination connection: |
AMP Male blade connector 6,3 x 0,8mm (4x) |
Power supply:
| Operating voltage: |
11 - 30 Volt DC |
| Current consumption without illumination: |
< 100 mA |
| Reverse polarity protection: |
Yes |
| Short circuit protection: |
Not specified by VDO |
Dial & Pointer:
| Deflection angle: |
320° |
| Dial colour: |
Black |
| Dial Illumination: |
Floodlight Double - 12V - 3.4 Watt White - Green - Red and 24V - 3 Watt - Optional |
| Pointer: |
Red backlight |
| Warning indication: |
None |
| Programming: |
Yes |
Design:
| Model: |
Cockpit International |
| Lens: |
Single - Anti-glare |
| Standard bezel: |
Triangular black (Threaded ring) |
Protection and standards:
| Front protection class: |
IP64 (DIN 40050) - Ozon proof - UV proof |
| Rear protection class: |
IP42 (DIN 40050) |
| Relative humidity: |
Not specified by VDO |
| Operating temperature: |
-20°C to +70°C |
| CE standard: |
Yes |
| DNV GL Certification: |
Not specified by VDO |
| Mechanical shock 8 hours: |
Max: 1G - 25Hz - 2000Hz |
| EMC test: |
According to EN 13309 and ISO 13766 |
| Nominal position: |
NL 0 to NL 90 - DIN 16257 |
| Housing: |
Plastic flame retardant |
Retail package:
- VDO Cockpit International 333 035 010G Tachometer
- 2 x Steel bracket zinc-plated and chromatized
- Connecting material order separately
