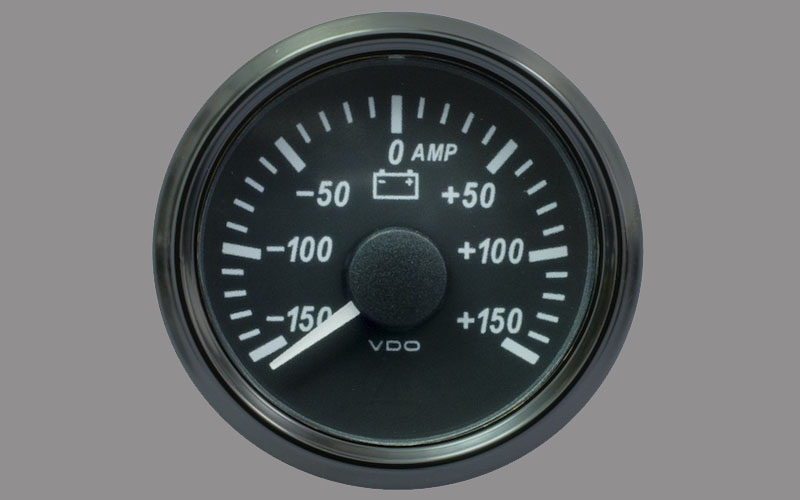

SingleViu Ammeter Gauges 150Amp
The SingleViu Ammeter 150 Amp Gauge by VDO is an advanced instrument designed for accurate monitoring of high electrical currents in demanding applications. This gauge is part of VDO's SingleViu series, known for its robust construction and user-friendly interface, making it suitable for a variety of industrial, automotive, and marine environments.
Specification:
- VDO Ammeter Gauges
- Black - Hole: 52 mm - 2 1/16"
- Operating voltage: 8-32 Volt DC
- Range: -150A to +150A DC - ISO 0247
- Analogue signal: -60 tot +60 mV
- CANBus input: 65271 - 114 - 0x29
- Connection cable included
Data sheet
- Voltage Measurement range
- -150A - 0 - 150A DC
- Warning light
- Red LED Via plus and min
- Operating voltage
- 8 - 32 Volt DC
- Packaging
- SingleViu Single piece retail
- Application
- VDO Engine monitoring
- Signal digital
- CANBus J1939: 65271-114-0x29
- Signal analogue
- 0 - 60 mV Shunt
- Serie
- VDO SingleViu CANBus-Analog
- Dial illumination
- Multi-colour programmable
- Dial scale
- Single
- Lens
- Mineral glass - Anti-fog
- Country of origin
- China
- Color
- Black
- IP Class front
- IP67 (IEC 60529)
- Input
- CAN Bus & Analog
- Installation dimension
- 52 mm - 2 1/16 Inch
- Warranty
- 2 Years
- Functionality
- Charge- and discharge current
- Bezel Interchangeable
- Yes - Special tool required
- Bezel model
- Black triangle

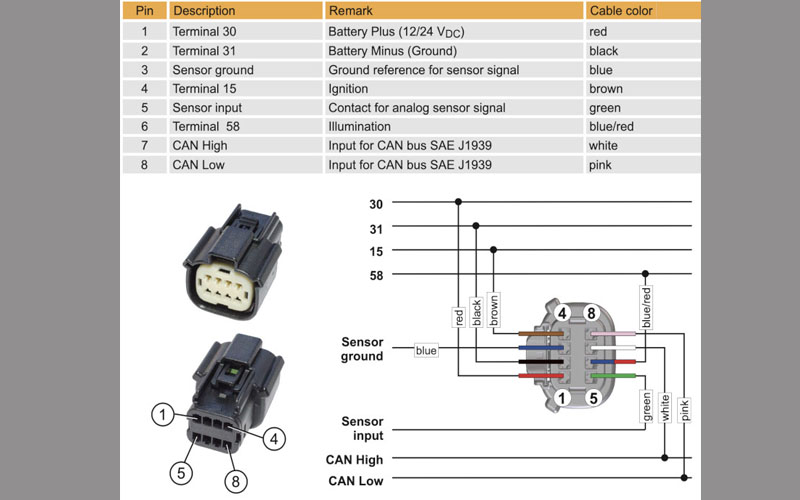

- Connector type
- Molex 8-Pin CANBus
- Communication
- CANBus J1939 or Analogue
- Category
- Ammeter gauges
- Article status
- Orderable
