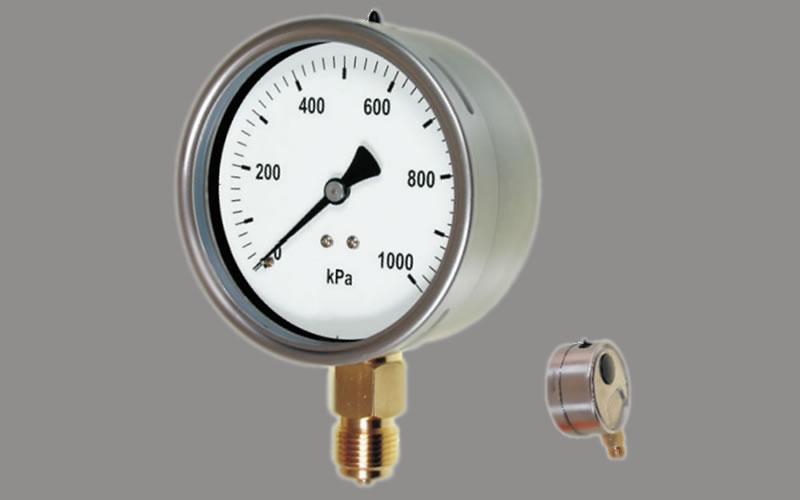

Industrial Pressure Gauge - PROCESS GAUGE

Heavy duty gauge intended for the process industry such as the chemical, petro-chemical, energy, oil & gas and the food and beverage industry. Glycerine fillable.

  • 63, 80, 100, 160, 250mm dial
  • S/steel case and bayonet bezel
  • Brass or s/steel 316 wetted parts
  • 1/8, 1/4, 3/8, 1/2" BSP/NPT Bottom or rear connection. Panel or surface mount flange optional
  • -100...0...160MPa, bar, psi etc.
  • Accuracy 1.0% and 1.6% F.S.

Service Intended

Suitable for media such as air, water, oil & gases that do not attack copper alloy or stainless steel parts or will obstruct the pressure system. Typical applications will be in the hydraulic, pneumatic, refrigeration, steam, chemical and food and beverage industry.

Case Details

Nominal Dia: 63, 100, 160, 250mm Material: Stainless steel 304

Bezel

Bayonet lock, twist type - removable. Material: Stainless steel 304

Pressure Connections

Material: Type T3: Brass. Type T4: Stainless steel 316
Sizes: 63 mm dia: 1/8” & 1/4” in BSP or NPT
Sizes: 100, 160 mm dia: 1/4”, 3/8” & 1/2” in BSP or NPT
Position: See “Mounting Configurations”.

Mounting Flange

Material: Polished stainless steel 304
Position: See “Mounting Configurations”.

Pressure Element

Material: Type T3: Cu-alloy Type T4: Stainless steel 316

Geared Movement

Material: Clockwork brass or stainless steel.

Pointer

Collet: Aluminium or brass
Blade: Black aluminium

Dial

Material: Aluminium, white with black lettering.

Window

Instrument glass, plexiglass or safety glass.
( Plexiglass recommended for food applications )

Weather Protection

IP 65 Dust & weather proof.

Working Pressure

Steady: Full scale value
Fluctuating: 90% of full scale value
Short Period: 130% of full scale value
For pulsating pressure, the use of an inlet restrictor and/or liquid filling is recommended.

Accuracy Class

63mm dia: Class 1.6
100mm, 160mm & 250mm dia: Class 1

Operating Temperature

Ambient: -20 °C to + 60 °C
Medium: +70 °C ( soldered tube ): + 100 °C ( brazed / tig wellded tube ) For live steam use, a syphon tube is recommended.

Optional Extras

Calibration Certificate
Customized scale plates ( customer logo, red line, etc )
Special Dials, other than standard ( dual scale, bar, psi )
Damped movement ( Vibragauge )
Single or double electrical contacts
Colour Coding of dial
Drag pointer ( maximum set pointer )
Micro adjustable pointer
Diaphragm seals fitted
