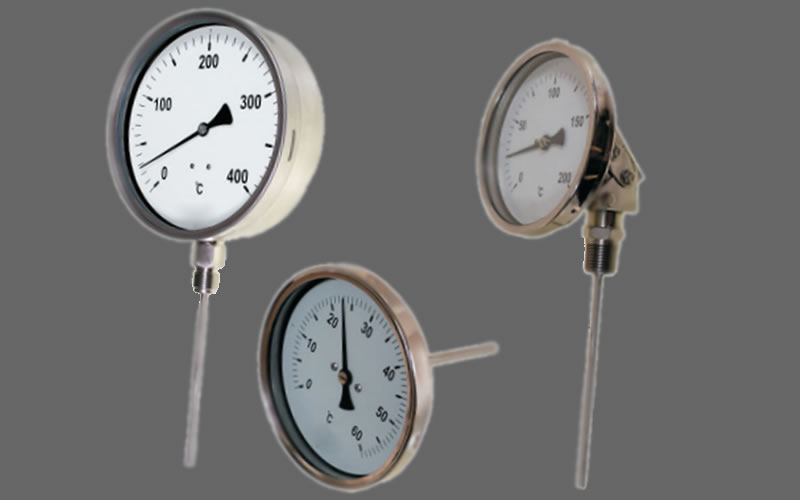

Process Industry Series Industrial Temperature Gauges are specialized instruments designed for accurate and reliable temperature measurement in process industry applications. Engineered to handle the rigorous demands of environments such as chemical processing, petrochemical production, and manufacturing, these gauges offer precision and durability. With features like robust construction, wide temperature ranges, and clear, easy-to-read displays, they are essential for maintaining optimal process conditions and ensuring system safety and efficiency. These gauges provide consistent performance, helping operators monitor and control temperature effectively in complex industrial processes.
Suitable for media such as air, water, oil, gas, and chemicals that will not attack stainless steel 316. Typical applications will be in a general industrial heating, air- conditioning, food, petroleum, and chemical industry.
Nominal Dia: 50, 63, 80, 100, 125 and 160mm
Material: Stainless steel 304
Adjustable set screw at the back of case for 80, 100,
125 and 160mm dia.
Type R: S/Steel rolled ring type - tamper proof - for 50
and 63mm dia.
Type T: S/Steel bayonet lock, twist type - removable -
for 80, 100, 125 and 160mm dia.
Material: Stainless steel 304
Bottom or rear mount, fixed or adjustable angle. With or without mounting flange. See “Mounting Configuration”. ( 50mm rear mount only )
To suit application. See “Standard stem and fitting sizes” table.
Max stem pressure w/o thermowell 2500 kPa.
Material: Stainless steel 316, exotic material on request.
Fabricated thermowell maximum pressure 16 MPa
Optional: Solid machined thermowell maximum pressure 60 MPa.
Material: Stainless steel 316, exotic material on request.
Glass or plexiglass.
White aluminium. Black lettering. Adjustable with set screw at back of case for 80, 100 125 & 160mm dia.
Black aluminium.
Bimetal coil, direct drive.
Maximum scale value.
Class 2 ( 2% of full scale value )
IP 65 water and weather proof.
Glycerine or silicone filling of stem and case.
Glycerine maximum 120°C
Silicon maximum 250°C
Calibration Certificate
Special Dials, other than standard
Customer Logos
Colour Coding
Thermowell to suit stem
Categories: Industrial Gauges
Condition: New
Brand: Murphy Gauges
