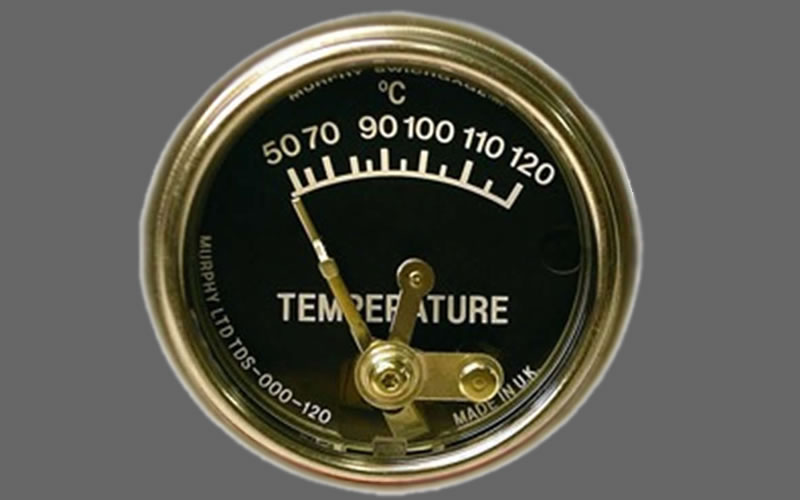

The Murphy Industrial Temperature Switch Gauge 20T is a versatile instrument designed for accurate temperature measurement and control in industrial applications. This gauge features an integrated temperature switch that allows for precise monitoring and automatic system responses when temperatures reach predefined thresholds. Ideal for use in machinery, engines, and processing systems, the 20T model provides reliable performance and durability in challenging environments. With its clear display and robust construction, it ensures effective temperature management and enhances operational safety and efficiency.
The 20 Series (2 inch/51 mm dial) and the 25 Series (2-1/2 inch/64 mm dial) Swichgage models are diaphragm-actuated, temperature-indicating gages with built-in electrical switches for tripping alarms and/or shut-down devices.
Ranges are available from 32°-120°F (0°-45°C) through 300°-440°F (160°-220°C).
The gage mechanism is enclosed in a steel case coated to resist corrosion. A polycarbonate, break- resistant lens and a polished, stainless steel bezel help protect this rugged, built-to-last instrument.
These vapor-actuated gages feature a sealed capillary tube and a sensing bulb. When subjected to heat, the liquid in the sensing bulb changes to vapor creating pressure against the diaphragm mechanism. The diaphragm translates this vapor pressure into a mechanical gage reading.
For series 20T and 25T, the gage pointer acts as a temperature indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact. Contact(s) are grounded through the Swichgage case. They have a self-cleaning motion to enhance electrical continuity.
These instruments are used on equipment in oil field and monitoring engine coolant, crankcase oil and transmission oil.
Categories: Industrial Gauges
Condition: New
Brand: Murphy Gauges
