Mining Industrial Pressure Gauges are durable and reliable instruments designed to measure and monitor pressure in the challenging environments of mining operations. Built to withstand harsh conditions such as dust, vibration, and extreme temperatures, these gauges provide accurate readings of hydraulic, air, and fluid pressures critical to the safety and efficiency of mining equipment. Their robust construction ensures long-lasting performance, making them essential tools for maintaining optimal operation and preventing pressure-related issues in underground and surface mining applications.

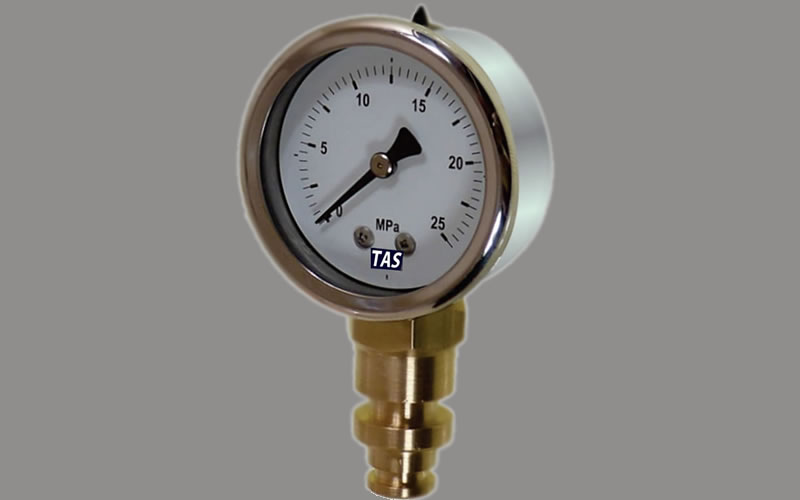

Staple lock plug fitting gauge is intended for mining equipment and plants where hydraulic support is required. Glycerine fillable.
For mining equipment and plants where hydraulic support is required.
Nominal Dia: 50, 63mm diameter.
Material: Stainless steel 304
S/Steel rolled ring type - tamper proof.
Material: Stainless steel 304.
Configuration: Bottom connection.
Material: Brass, staple lock design. (S/steel on request)
Material: Type 3: Cu-alloy.
0....60MPa (also bar, psi, etc.)
Material: Clockwork brass
Collet: Aluminium or brass Blade: Black aluminium
Material: Aluminium, white with black lettering.
Plexiglass
IP 65 Dust & weather proof.
Steady: Full scale value
Fluctuating: 90% of full scale value
Short Period: 130% of full scale value
Class 1.6
Ambient: -20 °C to + 60 °C
Medium: +70 °C ( soldered tube ): + 100 °C ( brazed / tig
welded tube )
Calibration Certificate
Customized scale plates ( customer logo, red line, etc )
Special Dials, other than standard ( dual scale, bar, psi )
Damped movement ( Vibragauge )
Colour Coding of dial
Categories: Industrial Gauges
Condition: New
Brand: Murphy Gauges
