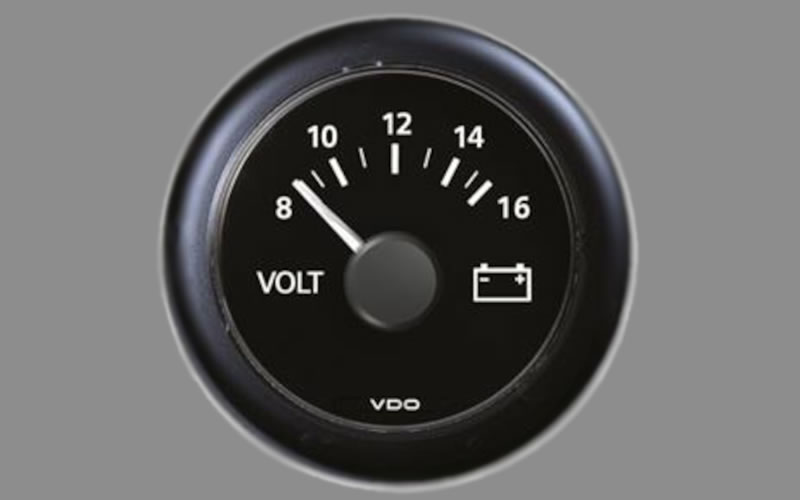

Marine Voltmeter Gauge 8-16V
The VDO Marine Voltmeter Gauge 8-16V is a reliable instrument designed specifically for marine environments to measure and display voltage levels between 8 and 16 volts. It features a clear, easy-to-read display, providing accurate and dependable readings essential for monitoring your boat's electrical system. This gauge helps ensure optimal performance of your battery and charging system, preventing potential electrical issues while on the water. With its robust construction and sleek design, the VDO Marine Voltmeter Gauge 8-16V is an essential tool for maintaining the health and efficiency of your vessel's electrical components.
Specification:
- Colour: Black
- Panel hole diameter: 52 mm - 2 1/16"
- Range: 8 to 16V DC
- Lens: Dual - Anti-Fog
- Retail package 1 Voltmeter gauge
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: |
52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch |
| Installation depth: |
50 mm |
| Locking height with Spinlock nut: |
0.5 mm - 20 mm |
| Locking height with bracket: |
2 mm - 15 mm (Optional) |
| Flushmount: |
Optional kit A2C59510864 |
Functionality:
| Voltmeter measurement range: |
8 to 16V DC |
| Signal input voltmeter: |
0 to 16V DC Battery power |
| Accuracy: |
< 3.6 angular degrees |
| Connection: |
Hirschmann 8 pins MQS connector |
Power supply:
| Operating voltage: |
8 to 16 Volt DC |
| Current consumption: |
< 140 mA including warning LED |
| Reverse polarity protection: |
Yes - 5 Minutes |
| Short circuit protection: |
Yes - 1 Minute |
Dial & Pointer:
| Deflection angle: |
90° |
| Dial colour: |
Black |
| Dial Illumination: |
Amber LED backlight 605nm |
| Pointer: |
White LED backlight |
| Warning LED: |
Red (632nm) |
| Programming: |
Veratron USB software kit |
Design:
| Model: |
Veratron ViewLine Marine |
| Lens: |
Dual - Anti-glare - Anti-Fog |
| Standard bezel: |
Round black (Interchangeable) |
Protection and standards:
| Front protection class: |
IP67 (IEC 60529) |
| Rear protection class: |
IP52 |
| Relative humidity: |
Maximum 95% |
| Operating temperature: |
-30°C to +80°C (Plastic bezel) |
| CE standard: |
Yes |
| DNV GL Certification: |
Yes |
| Mechanical shock continuous: |
25G - 6ms - 1Hz |
| Mechanical single shock |
100G - 11ms |
| Free fall test: |
1 Meter - 3x |
| Housing flame retarding: |
UL94-VD |
Retail package:
- Veratron ViewLine Black A2C59512545 Voltmeter
- Spinlock nut
- Bezel round black (Interchangeable)
- Adapter cable with 8 pole MQS connector
- Rubber seal
- QR code
- Safety instructions and installation manual
