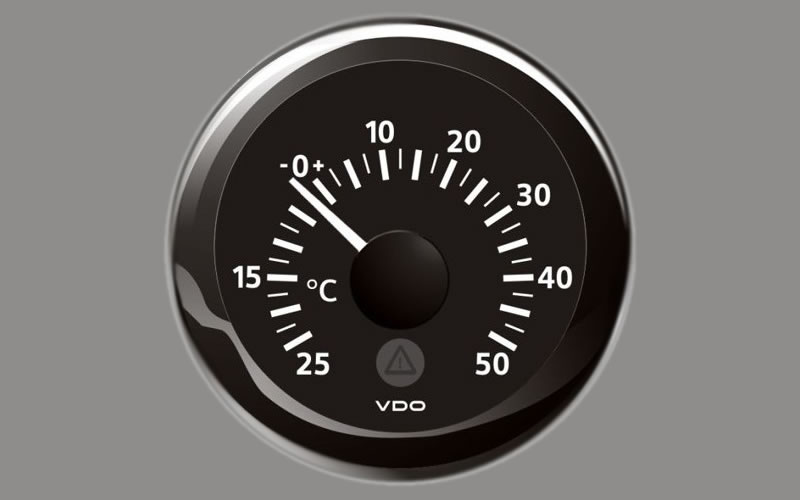

Marine Temperature Gauge 50°C
The VDO Marine Temperature Gauge 50°C is a precise instrument designed for monitoring temperatures up to 50 degrees Celsius in marine environments. It features a clear, easy-to-read display that ensures accurate and reliable readings, essential for maintaining optimal engine or system performance. Built to withstand harsh marine conditions, this gauge offers durability and longevity. The VDO Marine Temperature Gauge 50°C is an indispensable tool for ensuring the health and efficiency of various marine systems, providing peace of mind during your maritime adventures.
Specification:
- Colour: Black
- Panel hole diameter: 52 mm - 2 1/16"
- Range: -25°C to +50°C
- Lens: Dual - Anti-Fog
- Retail package 1 Temperature gauge
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: |
52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch |
| Installation depth: |
50 mm |
| Locking height with Spinlock nut: |
0.5 mm - 20 mm |
| Locking height with bracket: |
2 mm - 15 mm (Optional) |
| Flushmount: |
Optional kit A2C59510864 |
Functionality:
| Outside temperature range: |
-25°C to +50°C |
| Sensor signal input outside temperature gauge: |
Veratron NTC Thermistor 2.000 Ohm |
| Accuracy: |
< 2.5 % of the full scale reading |
| Connection: |
Hirschmann 8 pins MQS connector |
Power supply:
| Operating voltage: |
8 to 32 Volt DC |
| Current consumption: |
< 140 mA including warning LED |
| Reverse polarity protection: |
Yes - 5 Minutes |
| Short circuit protection: |
Yes - 1 Minute |
Dial & Pointer:
| Deflection angle: |
240° |
| Dial colour: |
Black |
| Dial Illumination: |
Amber LED backlight 605nm |
| Pointer: |
White LED backlight |
| Warning LED: |
Red (632nm) |
| Programming: |
Veratron USB software kit |
Design:
| Model: |
Veratron ViewLine Marine |
| Lens: |
Dual - Anti-glare - Anti-Fog |
| Standard bezel: |
Round black (Interchangeable) |
Protection and standards:
| Front protection class: |
IP67 (IEC 60529) |
| Rear protection class: |
IP52 |
| Relative humidity: |
Maximum 95% |
| Operating temperature: |
-30°C to +80°C (Plastic bezel) |
| CE standard: |
Yes |
| DNV GL Certification: |
Yes |
| Mechanical shock continuous: |
25G - 6ms - 1Hz |
| Mechanical single shock |
100G - 11ms |
| Free fall test: |
1 Meter - 3x |
| Housing flame retarding: |
UL94-VD |
Retail package:
- Veratron ViewLine Black A2C59512336 Outside temperature gauge
- Spinlock nut
- Bezel round black (Interchangeable)
- Adapter cable with 8 pole MQS connector
- Rubber seal
- QR code
- Safety instructions and installation manual
- Veratron Air temperature sender not included
