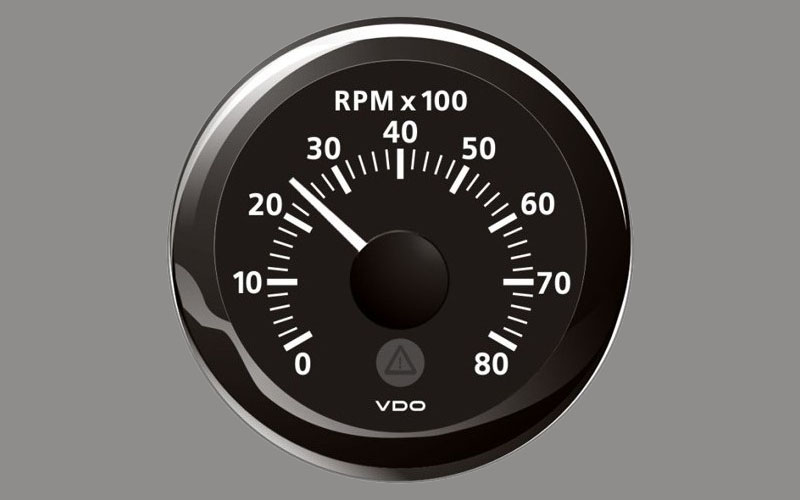

The VDO Marine Tachometer 8000 RPM Gauge is a high-precision instrument designed for marine environments, capable of measuring engine RPM up to 8000 revolutions per minute. It features a clear, easy-to-read display for accurate and reliable monitoring of high-revving marine engines. Built to endure harsh marine conditions, this tachometer combines durability with exceptional performance. The VDO Marine Tachometer 8000 RPM Gauge is essential for optimizing engine operation and ensuring safety and efficiency on the water.
| Installation (Hole) diameter and Outside diameter: | 52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch |
| Installation depth: | 50 mm |
| Locking height with Spinlock nut: | 0.5 mm - 20 mm |
| Locking height with bracket: | 2 mm - 15 mm (Optional) |
| Flushmount: | Optional kit A2C59510864 |
| Analog RPM measurement range: | 0 to 8.000 RPM |
| Sensor signal input tachometer: | Alternator terminal: W Ignition terminal: 1 Outboard engine: Lightning coil |
| Accuracy: | ± 2.5% of full scale reading |
| Connection: | Hirschmann 8 pins MQS connector |
| Operating voltage: | 8 to 32 V DC |
| Current consumption: | < 175 mA including warning LED |
| Reverse polarity protection: | Yes - 1 Minutes |
| Short circuit protection: | Yes - 1 Minute |
| Deflection angle: | 240° |
| Dial colour: | Black |
| Dial Illumination: | Amber LED backlight 605nm |
| Pointer: | White LED backlight |
| Warning LED: | Red (632nm) |
| Programming: | Veratron USB software kit |
| Model: | Veratron ViewLine Marine |
| Lens: | Dual - Anti-glare - Anti-Fog |
| Standard bezel: | Round black (Interchangeable) |
| Front protection class: | IP67 (IEC 60529) |
| Rear protection class: | IP52 |
| Relative humidity: | Maximum 95% |
| Operating temperature: | -30°C to +80°C (Plastic bezel) |
| CE standard: | Yes |
| DNV GL Certification: | Yes |
| Mechanical shock continuous: | 25G - 6ms - 1Hz |
| Mechanical single shock | 100G - 11ms |
| Free fall test: | 1 Meter - 3x |
| Housing flame retarding: | UL94-VD |
Categories: Marine Tachometer Gauges
Condition: New
Brand: VDO
