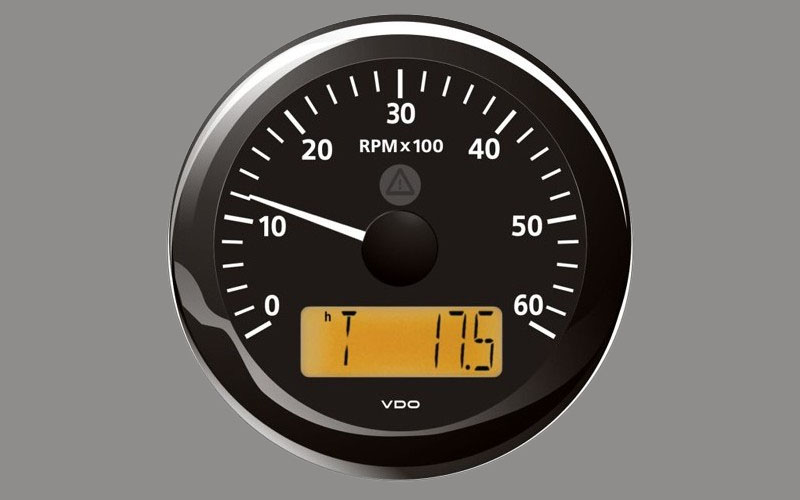

The VDO Marine Tachometer 6000 RPM is a high-performance gauge designed for marine environments, capable of measuring engine RPM up to 6000 revolutions per minute. It features a clear, easy-to-read display, offering precise and reliable readings to monitor engine performance on watercraft. Built to withstand the harsh conditions of marine settings, this tachometer ensures durability and long-term reliability. The VDO Marine Tachometer 6000 RPM is essential for optimizing engine operation and ensuring safe and efficient boating experiences.
| Installation (Hole) diameter and Outside diameter: | 85 mm - 3 3/8 Inch and 93 mm - 3 2/3 Inch |
| Installation depth: | 50 mm |
| Locking height with Spinlock nut: | 0.5 mm - 20 mm |
| Locking height with bracket: | 2 mm - 15 mm (Optional) |
| Flushmount: | Optional kit A2C59510864 |
| Analog RPM measurement range: | 0 to 6.000 RPM |
| Display functionality: | Engine hours counter Voltmeter Clock |
| Sensor signal input tachometer: | Alternator terminal: W Ignition terminal: 1 Outboard engine: Lightning coil NMEA 0183 |
| Accuracy: | ± 2.5% of full scale reading |
| Connection: | Hirschmann 8 & 14 pins MQS connector |
| Operating voltage: | 8 to 32 V DC |
| Current consumption: | < 175 mA including warning LED |
| Reverse polarity protection: | Yes - 1 Minutes |
| Short circuit protection: | Yes - 1 Minute |
| Deflection angle: | 240° |
| Dial colour: | Black |
| Dial Illumination: | Amber LED backlight 605nm |
| Pointer: | White LED backlight |
| Warning LED: | Red (632nm) |
| Programming: | Veratron USB software kit |
| Model: | Veratron ViewLine Marine |
| Lens: | Dual - Anti-glare - Anti-Fog |
| Standard bezel: | Round black (Interchangeable) |
| Front protection class: | IP67 (IEC 60529) |
| Rear protection class: | IP52 |
| Relative humidity: | Maximum 95% |
| Operating temperature: | -30°C to +80°C (Plastic bezel) |
| CE standard: | Yes |
| DNV GL Certification: | Yes |
| Mechanical shock continuous: | 25G - 6ms - 1Hz |
| Mechanical single shock | 100G - 11ms |
| Free fall test: | 1 Meter - 3x |
| Housing flame retarding: | UL94-VD |
Categories: Marine Tachometer Gauges
Condition: New
Brand: VDO
