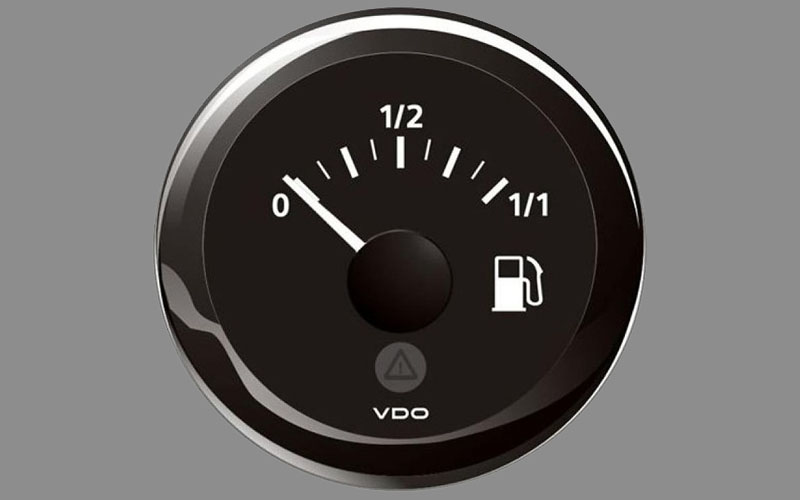

Marine Fuel Level Gauge 3-180 Ohm
The Marine Fuel Level Gauge 3-180 Ohm is a precision instrument tailored for marine applications. It accurately displays the fuel level in a boat's tank, working with senders that operate within the 3-180 Ohm range. Designed to endure the challenging marine environment, this gauge features a corrosion-resistant build and clear, legible markings for easy reading. Essential for boaters, the Marine Fuel Level Gauge helps ensure proper fuel management and enhances safety by preventing unexpected fuel depletion on the water.
Specification:
- Marine Fuel Level 3-180 Ohm Black 52mm
- Colour: Black
- Panel hole diameter: 52 mm - 2 1/16"
- Range: 0 - 1/2 - 1/1 = 3 - 180 Ohm
- Lens: Dual - Anti-Fog
- Retail package 1 Fuel level gauge
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: |
52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch |
| Installation depth: |
50 mm |
| Locking height with Spinlock nut: |
0.5 mm - 20 mm |
| Locking height with bracket: |
2 mm - 15 mm (Optional) |
| Flushmount: |
Optional kit A2C59510864 |
Functionality:
| Fuel level measurement range: |
0 - 1/2 - 1/1 |
| Resistance empty: |
3 Ohm |
| Resistance full: |
180 Ohm |
| Sensor signal input fuel level gauge: |
Veratron Lever arm sender 3 - 180 Ohm EU |
| Accuracy: |
< 3.6 angular degrees |

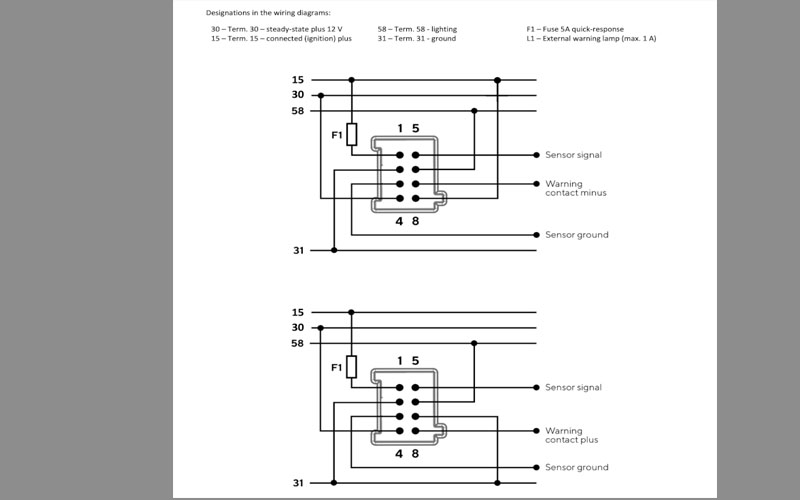

| Connection: |

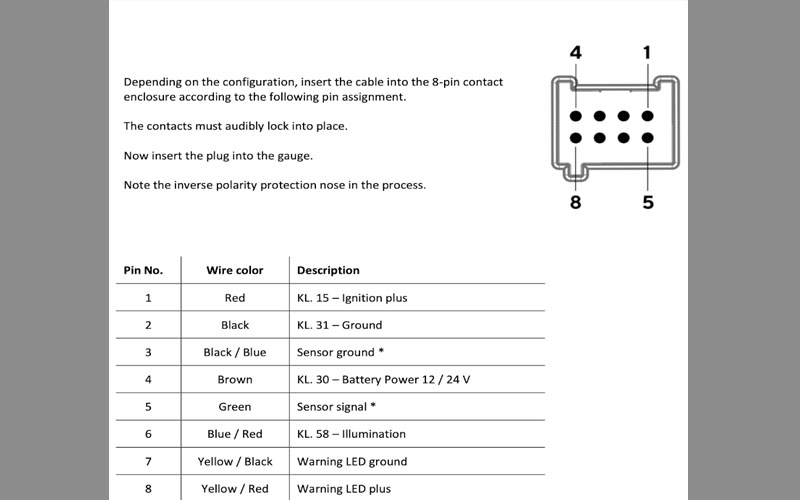

Hirschmann 8 pins MQS connector |
Power supply:
| Operating voltage: |
8 - 32 V DC |
| Current consumption: |
< 140 mA including warning LED |
| Reverse polarity protection: |
Yes - 5 Minutes |
| Short circuit protection: |
Yes - 1 Minute |
Dial & Pointer:
| Deflection angle: |
90° |
| Dial colour: |
Black |
| Dial Illumination: |
Amber LED backlight 605nm |
| Pointer: |
White LED backlight |
| Warning LED: |
Red (632nm) |
| Programming: |
Veratron USB software kit |
Design:
| Model: |
Veratron ViewLine Marine |
| Lens: |
Dual - Anti-glare - Anti-Fog |
| Standard bezel: |
Round black (Interchangeable) |
Protection and standards:
| Front protection class: |
IP67 (IEC 60529) |
| Rear protection class: |
IP52 |
| Relative humidity: |
Maximum 95% |
| Operating temperature: |
-30°C to +80°C (Plastic bezel) |
| CE standard: |
Yes |
| DNV GL Certification: |
Yes |
| Mechanical shock continuous: |
25G - 6ms - 1Hz |
| Mechanical single shock: |
100G - 11ms |
| Free fall test: |
1 Meter - 3x |
| Housing flame retarding: |
UL94-VD |
Retail package:
- Veratron ViewLine Black A2C53412985 Fuel level gauge
- Spinlock nut
- Bezel round black (Interchangeable)
- Adapter cable with 8 pole MQS connector
- Rubber seal
- QR code
- Safety instructions and installation manual
- Veratron Fuel level sender not included
