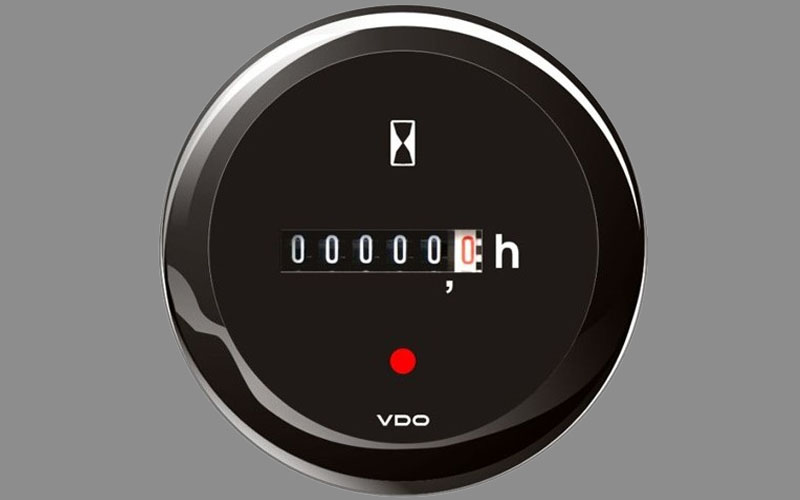

Marine Engine hours counter Black 52mm
Digital Vibration Hour Meter Tracks the service life of your engine - oil changes, valve, adjustments, spark plugs, etc… It Has an Easy installation of Digital Vibration Hour Meter - No wiring necessary, simply mount and cut wire at back for operation. No battery required - sealed lithium battery with a lifetime of 5 years. Digital Vibration Hour Meter Works on any vibration engine. Petrol / Diesel / electric. Hour glass symbol appears and flashes on/off to indicate counting time. Automatic Roll over. Digital Vibration Hour Meter Records and displays to 999999.9 hours Hours resolution : 0.1H, 100% epoxy encapsulated casing resists water. Shock, stand fire of 85 Celsius degree Waterproof - IP68 RATED.
The Digital Vibration Hour Meter Gauge is a sophisticated instrument designed to accurately record engine or machinery operating hours in environments prone to vibrations. Featuring a digital display, it provides precise, real-time hour tracking, essential for monitoring maintenance schedules and ensuring optimal performance. Its robust design is built to withstand harsh conditions and vibrations, making it ideal for use in industrial machinery, vehicles, and equipment. The gauge is user-friendly, offering clear readability and reliable performance, helping operators manage maintenance and operational efficiency effectively.
Specification:
- Colour: Black
- Panel hole diameter: 52 mm - 2 1/16"
- Range: 99999.9 hour
- Lens: Dual - Anti-Fog
- Retail package 1 EHC
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: | 52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch |
| Installation depth: | 50 mm |
| Locking height with Spinlock nut: | 0.5 mm - 20 mm |
| Locking height with bracket: | 2 mm - 15 mm (Optional) |
| Flushmount: | Optional kit A2C59510864 |
Functionality:
| EHC Measurement range: | 0 - 99999.9 Hours |
| Signal Input: | Plus ignition switch |
| Accuracy: | ± 5 sec/d (At 14V DC - 23°C - NL45) |

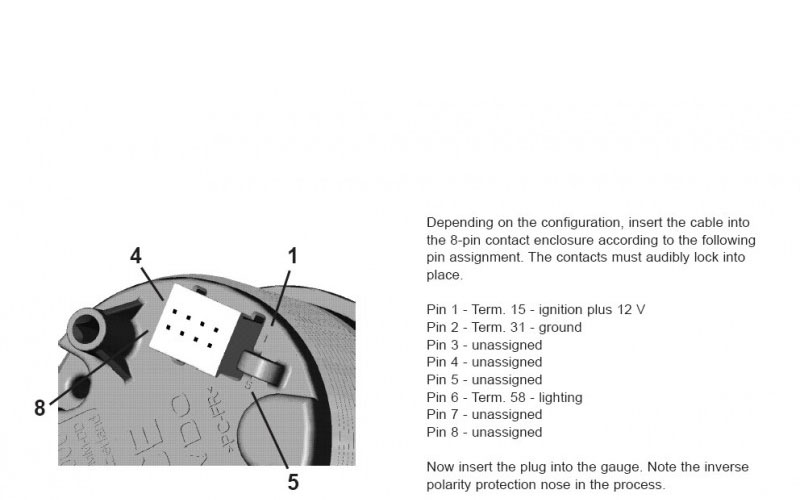

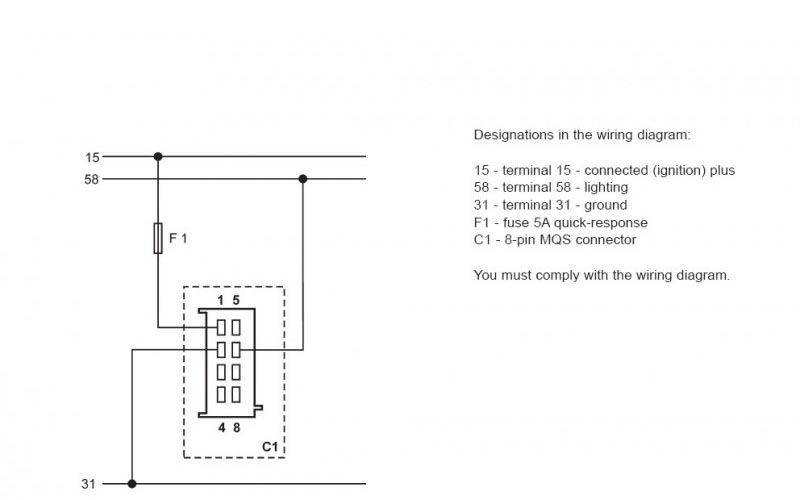

| Connection: | Hirschmann 8 pins MQS connector |
Power supply:
| Operating voltage: | 9 to 30 V DC |
| Current consumption: | < 140 mA including warning LED |
| Reverse polarity protection: | Yes - 5 Minutes |
| Short circuit protection: | Not specified by Veratron |
Dial & Pointer:
| Dial: | 6 Digits |
| Dial colour: | Black |
| Dial Illumination: | Amber LED backlight 605nm |
| Digits: | White LED backlight |
| Warning LED: | Red (632nm) |
| Programming: | Veratron USB software kit |
Design:
| Model: | Veratron ViewLine Marine |
| Lens: | Dual - Anti-glare - Anti-Fog |
| Standard bezel: | Round black (Interchangeable) |
Protection and standards:
| Front protection class: | IP67 (IEC 60529) |
| Rear protection class: | IP52 |
| Relative humidity: | Maximum 95% |
| Operating temperature: | -30°C to +80°C (Plastic bezel) |
| CE standard: | Yes |
| DNV GL Certification: | Yes |
| Mechanical shock continuous: | 25G - 6ms - 1Hz |
| Mechanical single shock | 100G - 11ms |
| Free fall test: | 1 Meter - 3x |
| Housing flame retarding: | UL94-VD |
Retail package:
- Veratron ViewLine Black A2C59512453 Engine hours counter
- Spinlock nut
- Bezel round black (Interchangeable)
- Adapter cable with 8 pole MQS connector
- Rubber seal
- QR code
- Safety instructions and installation manual
