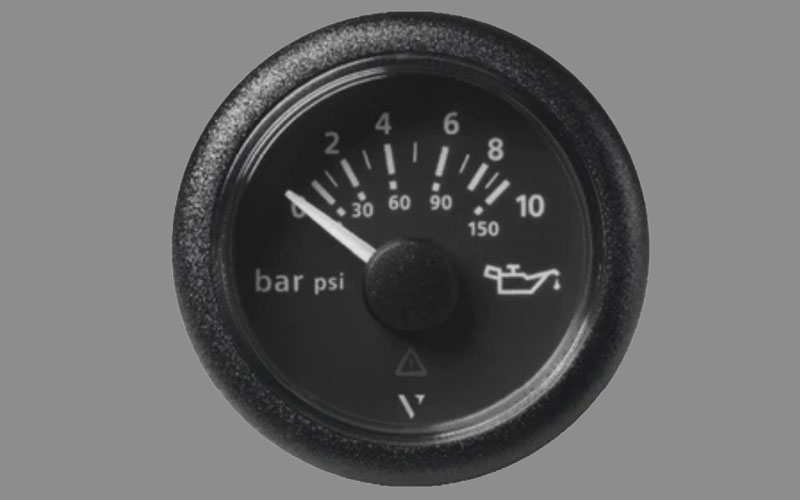

Marine Engine Oil Pressure Gauges 10Bar
The Marine Engine Oil Pressure Gauge 10 Bar is a specialized instrument designed for marine applications, providing precise monitoring of engine oil pressure. With a measurement range up to 10 Bar, this gauge ensures accurate readings to help maintain optimal engine performance and prevent potential damage. Built to withstand the harsh marine environment, it features corrosion-resistant materials and a clear, easy-to-read display. This gauge is essential for ensuring proper lubrication and early detection of any oil pressure issues, contributing to the reliable operation of marine engines.
Specification:
- Colour: Black
- Panel hole diameter: 52 mm - 2 1/16"
- Range: 0 to 10 Bar
- Lens: Dual - Anti-Fog
- Retail package 1 Pressure gauge
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: |
52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch |
| Installation depth: |
50 mm |
| Locking height with Spinlock nut: |
0.5 mm - 20 mm |
| Locking height with bracket: |
2 mm - 15 mm (Optional) |
| Flushmount: |
Optional kit A2C59510864 |
Functionality:
| Engine oil pressure upper scale range: |
0 to 10 Bar |
| Engine oil pressure under scale range: |
0 to 150 PSI |
| Sensor signal input engine oil pressure: |
Veratron Pressure sender 10 to 184 Ohm |
| Accuracy: |
< 3.6 angular degrees |
| Connection: |

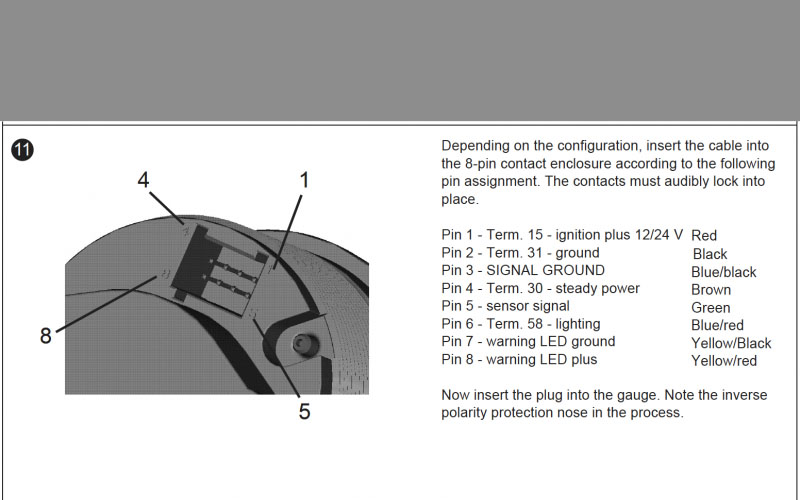

Hirschmann 8 pins MQS connector |
Power supply:
| Operating voltage: |
8 to 32 Volt DC |
| Current consumption: |
< 140 mA including warning LED |
| Reverse polarity protection: |
Yes - 5 Minutes |
| Short circuit protection: |
Yes - 1 Minute |
Dial & Pointer:
| Deflection angle: |
90° |
| Dial colour: |
Black |
| Dial Illumination: |
Amber LED backlight 605nm |
| Pointer: |
White LED backlight |
| Warning LED: |
Red (632nm) |
| Programming: |
Veratron USB software kit |
Design:
| Model: |
Veratron ViewLine Marine |
| Lens: |
Dual - Anti-glare - Anti-Fog |
| Standard bezel: |
Round black (Interchangeable) |
Protection and standards:
| Front protection class: |
IP67 (IEC 60529) |
| Rear protection class: |
IP52 |
| Relative humidity: |
Maximum 95% |
| Operating temperature: |
-30°C to +80°C (Plastic bezel) |
| CE standard: |
Yes |
| DNV GL Certification: |
Yes |
| Mechanical shock continuous: |
25G - 6ms - 1Hz |
| Mechanical single shock |
100G - 11ms |
| Free fall test: |
1 Meter - 3x |
| Housing flame retarding: |
UL94-VD |
Retail package:
- Veratron ViewLine Black A2C53413313 Engine oil pressure gauge
- Spinlock nut
- Bezel round black (Interchangeable)
- Adapter cable with 8 pole MQS connector
- Rubber seal
- QR code
- Safety instructions and installation manual
- Veratron Pressure sender not included
