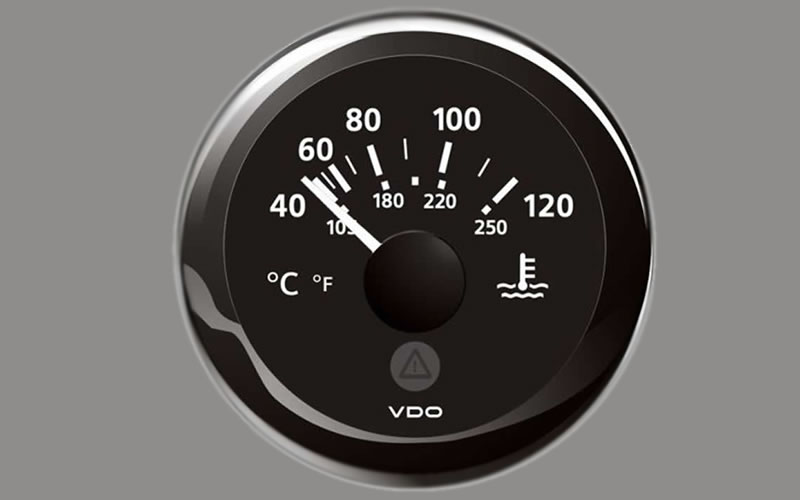

Marine Coolant Temperature Gauge 120°C
The VDO Marine Coolant Temperature Gauge 120°C is a precision instrument specifically designed for marine environments, capable of measuring engine coolant temperature up to 120 degrees Celsius. It features a clear, easy-to-read display that ensures accurate and reliable readings, essential for monitoring the cooling system's performance. Built to withstand harsh marine conditions, this gauge combines durability with functionality, helping to prevent overheating and maintain optimal engine performance. The VDO Marine Coolant Temperature Gauge 120°C is an essential tool for ensuring the longevity and efficiency of your marine engine.
Specification:
- Colour: Black
- Panel hole diameter: 52 mm - 2 1/16"
- Range: +40°C to +120°C
- Lens: Dual - Anti-Fog
- Retail package 1 Temperature gauge
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: |
52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch |
| Installation depth: |
50 mm |
| Locking height with Spinlock nut: |
0.5 mm - 20 mm |
| Locking height with bracket: |
2 mm - 15 mm (Optional) |
| Flushmount: |
Optional kit A2C59510864 |
Functionality:
| Coolant temperature upper scale range: |
+40°C to +120°C |
| Coolant temperature under scale range: |
+105°F to +250°F |
| Sensor signal input coolant temperature gauge: |
Veratron NTC Thermistor 287.4-22.7 Ohm |
| Accuracy: |
< 3.6 angular degrees |
| Connection: |
Hirschmann 8 pins MQS connector |
Power supply:
| Operating voltage: |
10 to 32 Volt DC |
| Current consumption: |
< 140 mA including warning LED |
| Reverse polarity protection: |
Yes - 5 Minutes |
| Short circuit protection: |
Yes - 1 Minute |
Dial & Pointer:
| Deflection angle: |
90° |
| Dial colour: |
Black |
| Dial Illumination: |
Amber LED backlight 605nm |
| Pointer: |
White LED backlight |
| Warning LED: |
Red (632nm) |
| Programming: |
Veratron USB software kit |
Design:
| Model: |
Veratron ViewLine Marine |
| Lens: |
Dual - Anti-glare - Anti-Fog |
| Standard bezel: |
Round black (Interchangeable) |
Protection and standards:
| Front protection class: |
IP67 (IEC 60529) |
| Rear protection class: |
IP52 |
| Relative humidity: |
Maximum 95% |
| Operating temperature: |
-30°C to +80°C (Plastic bezel) |
| CE standard: |
Yes |
| DNV GL Certification: |
Yes |
| Mechanical shock continuous: |
25G - 6ms - 1Hz |
| Mechanical single shock |
100G - 11ms |
| Free fall test: |
1 Meter - 3x |
| Housing flame retarding: |
UL94-VD |
Retail package:
- Veratron ViewLine Black A2C53413385 Coolant temperature gauge
- Spinlock nut
- Bezel round black (Interchangeable)
- Adapter cable with 8 pole MQS connector
- Rubber seal
- QR code
- Safety instructions and installation manual
- Veratron Coolant temperature sender not included
