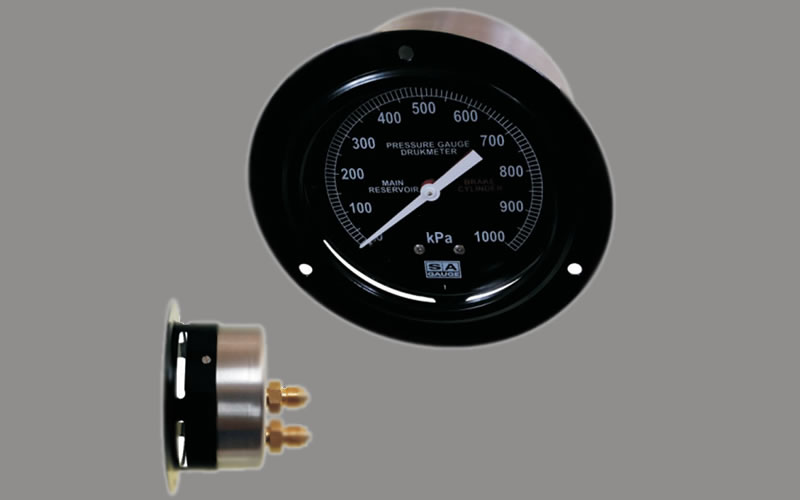

LOCOMOTIVE PRESSURE GAUGE, 160mm (6") SQUARE

Robust duplex gauge designed for rolling stock in the railway or industrial locomotive industry.

• 160mm dial
• S/steel case with square slotted front flange for illumination.
• Duplex brass wetted
parts
• 1/4, 3/8" NPT Bottom
• -100...0...6000kPa, bar, psi etc.
• Accuracy 1.0% F.S.

Service Intended

Specifically designed duplex gauge for diesel / steam railway and industrial locomotive use. Illumination slots behind the bezel facilitates easy reading in dim environments. Available with special square, removable front flange, with or without illumination slots

Case Details

Nominal Dia: 160mm diameter.
Material: Stainless steel 304

Bezel

Material: Stainless steel 304 or mild steel powder coated.

Pressure Connections

Material: Brass - duplex
Sizes: 3/8" BSP standard, other sizes on request

Mounting Configuration

Duplex bottom entry with square, removable front flange, with or without illumination slots, in stainless steel or mild steel powder coated.

Pressure Element

Material: Cu-alloy.

Pressure Ranges

-100...6000kPa (also bar, psi, etc.)

Pointer

Collet: Aluminium or brass
Blade: Black or white aluminium depending on dial colour.

Dial

Material: Aluminium, black with white lettering or white with black lettering.

Window

Instrument glass or plexiglass

Weather Protection

IP 54 Dust resistant.

Working Pressure

Steady: Full scale value
Fluctuating: 90% of full scale value
Short Period: 130% of full scale value
For pulsating pressure, the use of an inlet restrictor and/or damped movement is recommended.

Accuracy Class

Class 1

Operating Temperature

Ambient: -20 °C to + 60 °C
Medium: +70 °C

Optional Extras

Calibration Certificate (Manufacturers)
Calibration Certificate (SANAS)
Customized scale plates ( customer logo, red line, etc )
Special Dials, other than standard ( dual scale, bar, psi )
Colour Coding of dial
Blow out disc
