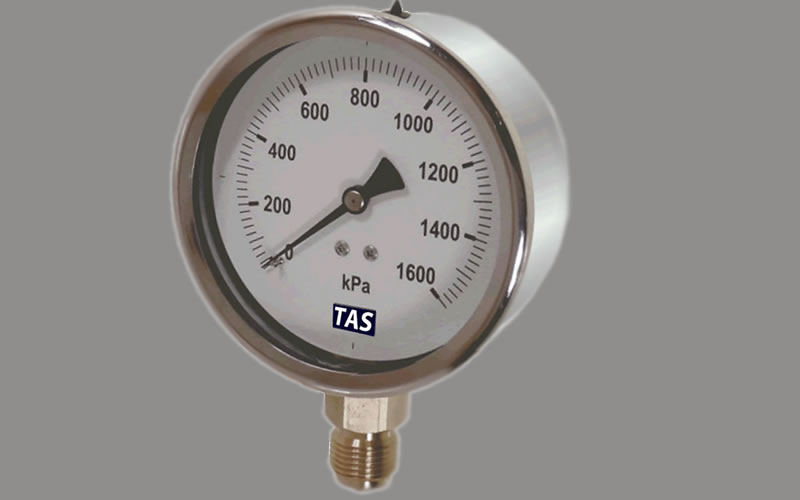

General Purpose Industrial Gauges are versatile instruments designed to measure and display various parameters such as pressure, temperature, and level in industrial applications. These gauges are built for reliability and durability, capable of withstanding harsh environments while providing accurate and consistent readings. Suitable for a wide range of industries, including manufacturing, processing, and automation, they help monitor and maintain optimal system performance. With their robust construction and clear displays, General Purpose Industrial Gauges are essential tools for ensuring the efficiency and safety of industrial operations.
For general demanding industrial applications like hydraulic, mining, shipping and machine building industry. Glycerine fillable.
Suitable for media such as air, water, oil & gases that do not attack copper alloy or stainless steel parts or will obstruct the pressure system. Typical applications will be in the hydraulic, pneumatic, refrigeration, steam, chemical and food and beverage industry.
Nominal Dia: 40, 50, 63, 80, 100, 160mm Material: Stainless steel 304
S/Steel rolled ring type - tamper proof.
Material: Stainless steel 304
Material: Type 3: Brass. Type 4: Stainless steel 316
Sizes: 50, 63, 80, mm dia: 1/8” & 1/4” in BSP or NPT
Sizes: 100, 160mm dia: 1/4”, 3/8” & 1/2” in BSP or NPT
(Position: See “Mounting Configurations”.)
Material: Polished stainless steel 304
Material: Type 3: Cu-alloy Type 4: Stainless steel 316
Material: Clockwork brass or stainless steel.
Collet: Aluminium or brass Blade: Black aluminium
Material: Aluminium, white with black lettering.
Instrument glass or plexiglass (plexiglass recommended for food applications )
IP 65 Dust & weather proof.
Steady: Full scale value
Fluctuating: 90% of full scale value
Short Period: 130% of full scale value
For pulsating pressure, the use of an inlet restrictor and/or liquid
filling is recommended.
40mm dia: 2.5
50mm, 63mm & 80mm dia: Class 1.6
100mm,160mm dia: Class 1
Ambient: -20 °C to + 60 °C
Medium: +70 °C ( soldered tube ): + 100 °C ( brazed / tig
welded tube ) For live steam use, a syphon tube is
recommended.
Calibration Certificate
Customized scale plates ( customer logo, red line, etc )
Special Dials, other than standard ( dual scale, bar, psi )
Damped movement ( Vibragauge )
Colour Coding of dial
Drag pointer ( maximum set pointer )
Micro adjustable pointer
Blow out disc
Diaphragm seals fitted
Categories: Industrial Gauges
Condition: New
Brand: Murphy Gauges
