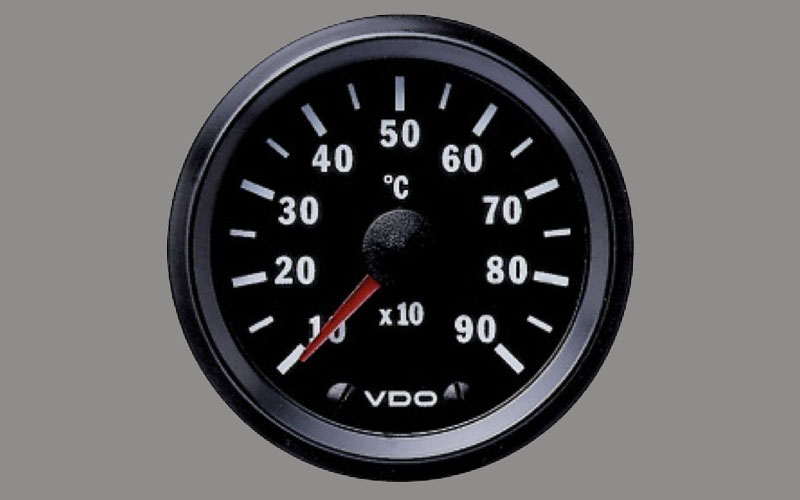

Exhaust Temperature Gauge 900°C
The VDO Exhaust Temperature Gauge 900°C is a high-precision instrument designed to measure exhaust gas temperature up to 900 degrees Celsius. It features a clear, easy-to-read display, providing accurate and reliable readings crucial for monitoring engine performance and efficiency. Ideal for high-performance and heavy-duty applications, this gauge helps prevent overheating and potential engine damage by allowing for precise temperature management. The VDO Exhaust Temperature Gauge 900°C combines durability with advanced functionality, making it an essential tool for maintaining optimal engine operation and longevity.
Specification:
- Colour: Black
- Panel hole diameter: 52 mm - 2 1/16"
- Range: +100°C to +900°C
- Operating voltage: 12 Volt DC
- Retail package 1 Temperature gauge
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: |
52 mm - 2 1/16 Inch en 59.25 mm - 2 1/3 Inch |
| Installation depth: |
67.5 mm |
| Locking height with Spinlock nut: |
Not available |
| Locking height with bracket: |
0.5 mm - 8 mm |
| Flushmount: |
None |
Functionality:
| Exhaust temperature range: |
+100°C to +900°C |
| Sensor signal uitlaatgas temperature gauge: |
VDO 37 mV Thermocouple type K |
| Accuracy: |
Not specified by VDO |
| Connection: |
AMP Male blade connector 6,3 x 0,8mm (3x) |
| Illumination connection: |
AMP Male blade connector 6,3 x 0,8mm (2x) |
Power supply:
| Operating voltage: |
11 - 16 Volt DC |
| Current consumption without illumination: |
131 mA |
| Reverse polarity protection: |
Yes |
| Short circuit protection: |
Not specified by VDO |
Dial & Pointer:
| Deflection angle: |
90° |
| Dial colour: |
Black |
| Dial Illumination: |
Floodlight 12V - 3.4 Watt White - Green - Red and 24V - 3 Watt - Optional |
| Pointer: |
Red backlight |
| Warning indication: |
None |
| Programming: |
None |
Design:
| Model: |
Cockpit International |
| Lens: |
Single - Anti-glare |
| Standard bezel: |
Triangular black (Threaded ring) |
Protection and standards:
| Front protection class: |
IP64 (DIN 40050) - Ozon proof - UV proof |
| Rear protection class: |
IP42 (DIN 40050) |
| Relative humidity: |
Not specified by VDO |
| Operating temperature: |
-30°C to +85°C |
| CE standard: |
Yes |
| DNV GL Certification: |
Not specified by VDO |
| Mechanical shock 8 hours: |
Max: 1G - 25Hz - 2000Hz |
| EMC test: |
According to EN 13309 and ISO 13766 |
| Nominal position: |
NL 0 to NL 90 - DIN 16257 |
| Housing: |
Plastic flame retardant |
Retail package:
- VDO Cockpit International 397 015 003C Temperature gauge
- VDO N03-320-264 Exhaust thermocouple Type K included
- VDO N03-320-268 Thermocouple cable 6m included li>Steel bracket zinc-plated and chromatized
