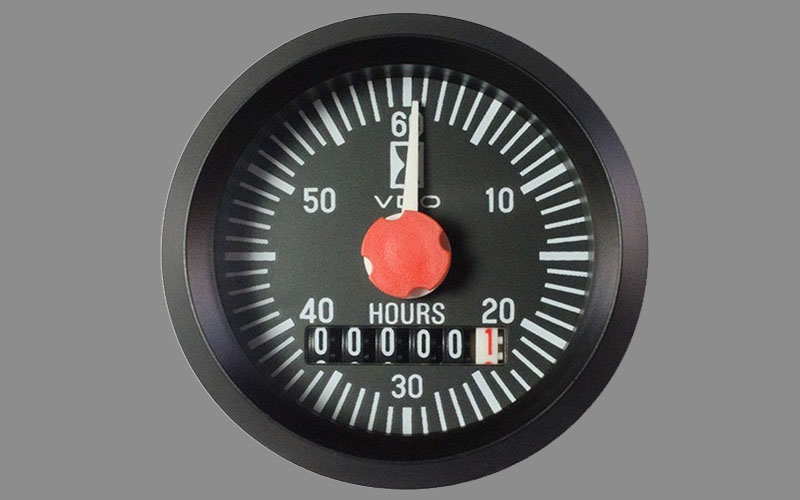

Engine hours counter meter gauge 52 mm 12V
The Engine Hours Counter Meter Gauge 52 mm 12V is a durable and compact instrument designed to track the total operating hours of an engine. With a 52 mm diameter, it fits neatly into standard gauge openings, and its 12V compatibility makes it suitable for a wide range of vehicles and machinery. This gauge provides accurate, real-time data on engine run time, which is crucial for maintenance scheduling and operational monitoring. Its clear display and reliable performance help ensure that engine maintenance is performed at the appropriate intervals, promoting longevity and efficiency.
Specification:
- Colour: Black
- Panel hole diameter: 52 mm - 2 1/16"
- Range: 99999.9 hour en Minutenwijzer
- Operating voltage: 12 Volt DC
- Retail package 1 Engine hours counte
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: |
52 mm - 2 1/16 Inch en 59.25 mm - 2 1/3 Inch |
| Installation depth: |
53 mm |
| Locking height with Spinlock nut: |
0.5 mm - 20 mm |
| Locking height with bracket: |
Not available |
| Flushmount: |
None |
Functionality:
| EHC Measurement range: |
0 - 99999.9 Hours and minut pointer |
| Signal input engine hours counter (EHC): |
Plus ignition switch |
| Accuracy: |
± 5s per day at room temperature |
| Connection: |
AMP Male blade connector 6,3 x 0,8mm (2x) |
| Illumination connection: |
None |
Power supply:
| Operating voltage: |
11 - 16 Volt DC |
| Current consumption without illumination: |
< 10 mA |
| Reverse polarity protection: |
Yes |
| Short circuit protection: |
Not specified by VDO |
Dial & Pointer:
| Dial: |
6 Digits |
| Dial colour: |
Black |
| Dial Illumination: |
None |
| Digits and pointer: |
White |
| Warning indication: |
None |
| Programming: |
None |
Design:
| Model: |
Cockpit International |
| Lens: |
Single - Anti-glare |
| Standard bezel: |
Triangular black (Threaded ring) |
Protection and standards:
| Front protection class: |
IP64 (DIN 40050) - Ozon proof - UV proof |
| Rear protection class: |
IP42 (DIN 40050) |
| Relative humidity: |
Not specified by VDO |
| Operating temperature: |
-30°C to +85°C |
| CE standard: |
Yes |
| DNV GL Certification: |
Not specified by VDO |
| Mechanical shock 8 hours: |
Max: 1G - 25Hz - 2000Hz |
| EMC test: |
According to EN 13309 and ISO 13766 |
| Nominal position: |
NL 0 to NL 90 - DIN 16257 |
| Housing: |
Plastic flame retardant |
Retail package:
- VDO Cockpit International 331 810 012 002G Engine hours counter
- Spinlock nut
- Connecting material order separately
