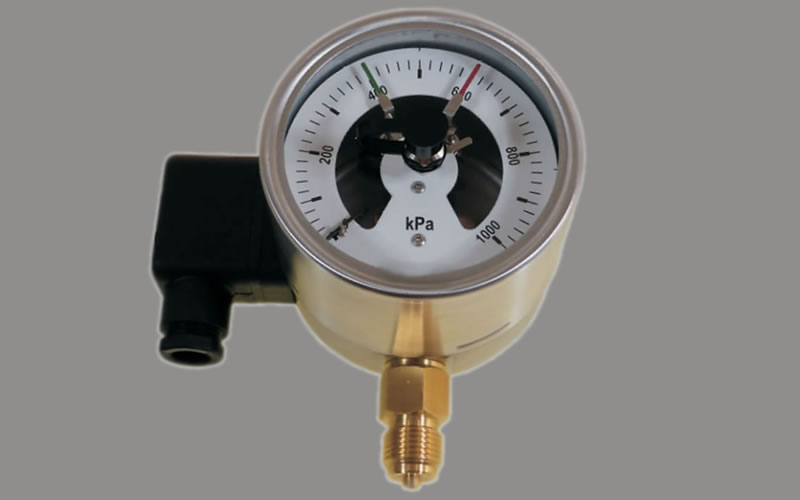

Electrical Contact Pressure Gauges are advanced instruments designed to measure pressure while simultaneously providing electrical switching functions at preset pressure levels. These gauges are ideal for automation and control systems where maintaining specific pressure thresholds is critical. When the pressure reaches the set point, the gauge triggers an electrical contact, activating alarms, shutting down equipment, or initiating other control actions. Robustly constructed for industrial environments, Electrical Contact Pressure Gauges combine precise pressure measurement with reliable control, making them essential tools for enhancing safety and efficiency in complex systems.
With external dome mounted snap action magnetic contacts are intended for the control and regulation of industrial processes where switching of electrical circuits are required for the industrial, mining and process industry.
Suitable for media such as air, water, oil & gases that do not attack copper alloy or stainless steel parts or will obstruct the pressure system. Typical applications will be for the control and regulation of industrial processes where switching of electrical circuits are required. Externally adjustable, single or double contacts, can be fitted to a SA Gauge pressure gauge to make the gauge suitable to activate or deactivate electrical devices. Contact can make or break in an upward or downward pressure cycle.
Nominal Dia: 100, 160 mm diameter. S/Steel 304
Bayonet locking, twist type - removable. S/Steel 304
Material: Type T3: Brass. Type T4: S/Steel 316
Sizes: 1/4”, 3/8” & 1/2” in BSP or NPT
Position: See “Mounting Configurations”.
Material: S/Steel 304 See “Mounting Configurations”.
Material: Type T3: Cu-alloy. Type T4: S/Steel 316
0...60kPa to 250MPa (also bar, psi, etc.)
Gauge Pointer: Black
Single Contact Pointer: Red
Double Contact Pointer: 1st Cont - Green, 2nd Cont - Red
- Aluminium, white with black lettering
Plexiglass / polycarbonate.
IP 54.
Steady: Full scale value
Fluctuating: 90% of full scale value
Short Period: 130% of full scale value
For pulsating pressure, the use of an inlet restrictor and/or damped
movement.
Class 1
- Ambient: -20 °C to + 60 °C
Medium: +70 °C ( soldered tube ): + 100 °C ( brazed / tig
wellded tube ) For live steam use, a syphon tube is recommended
- Calibration Certificate
Customized scale plates ( customer logo, red line, etc )
Special Dials, other than standard ( dual scale, bar, psi )
Damped movement ( Vibragauge ), Colour Coding of dial
Blow out disc, Diaphragm seals fitted
