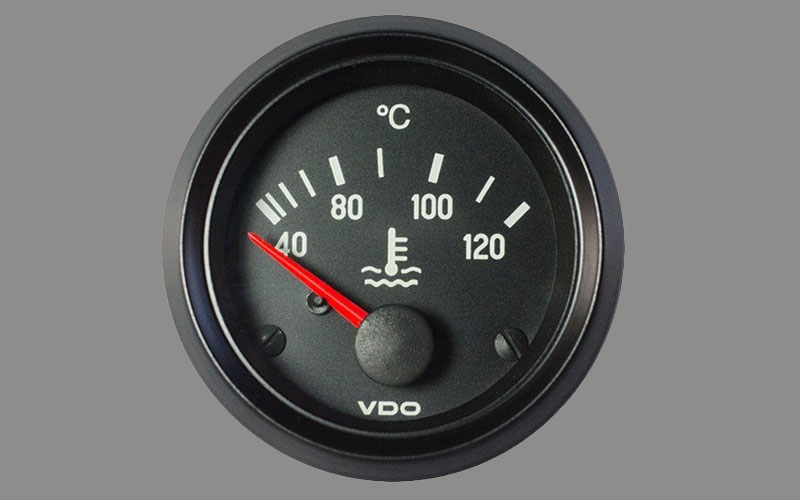

Coolant Temperature Gauge 120°C

The VDO Coolant Temperature Gauge 120°C is a high-quality instrument designed to measure engine coolant temperature up to 120 degrees Celsius. It features a clear, easy-to-read display, providing accurate and reliable readings essential for monitoring engine cooling system performance. Ideal for automotive and marine applications, this gauge helps prevent overheating and ensures optimal engine operation by allowing for precise temperature management. The VDO Coolant Temperature Gauge 120°C combines durability with precision, making it an essential tool for maintaining engine health and efficiency.



Specification:

  • Colour: Black
  • Panel hole diameter: 52 mm - 2 1/16"
  • Range: +40°C to +120°C
  • Operating voltage: 12 Volt DC
  • Retail package 1 Temperature gauge

Sizes and mounting:

Installation (Hole) diameter and Outside diameter: 52 mm - 2 1/16 Inch en 59.25 mm - 2 1/3 Inch
Installation depth: 67.5 mm
Locking height with Spinlock nut: Not available
Locking height with bracket: 0.5 mm - 8 mm
Flushmount: None

Functionality:

Coolant temperature range: +40°C to +120°C
Sensor signal coolant temperature gauge: VDO NTC Thermistor 287.4-22.7 Ohm
Accuracy: Not specified by VDO
Connection: AMP Male blade connector 6,3 x 0,8mm (3x)
Illumination connection: AMP Male blade connector 6,3 x 0,8mm (2x)

Power supply:

Operating voltage: 11 - 16 Volt DC
Current consumption without illumination: 131 mA
Reverse polarity protection: Yes
Short circuit protection: Not specified by VDO

Dial & Pointer:

Deflection angle: 90°
Dial colour: Black
Dial Illumination: Floodlight 12V - 3.4 Watt White - Green - Red and 24V - 3 Watt - Optional
Pointer: Red backlight
Warning indication: None
Programming: None

Design:

Model: Cockpit International
Lens: Single - Anti-glare
Standard bezel: Triangular black (Threaded ring)

Protection and standards:

Front protection class: IP64 (DIN 40050) - Ozon proof - UV proof
Rear protection class: IP42 (DIN 40050)
Relative humidity: Not specified by VDO
Operating temperature: -30°C to +85°C
CE standard: Yes
DNV GL Certification: Not specified by VDO
Mechanical shock 8 hours: Max: 1G - 25Hz - 2000Hz
EMC test: According to EN 13309 and ISO 13766
Nominal position: NL 0 to NL 90 - DIN 16257
Housing: Plastic flame retardant

OEM (10 pieces) package:

  • VDO Cockpit International 310 030 002C Temperature gauge
  • Steel bracket zinc-plated and chromatized
  • Connecting material order separately
