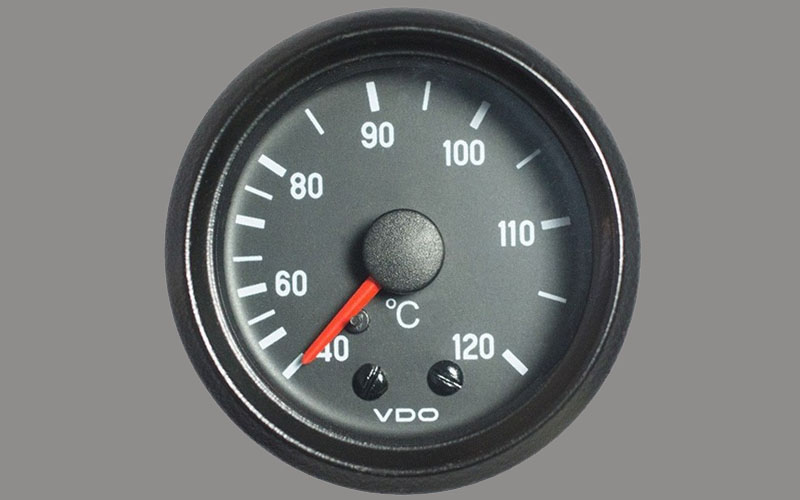

Coolant Temperature Gauge Mechanical 120°C
The VDO Coolant Temperature Gauge Mechanical 120°C is a high-quality instrument designed to measure engine coolant temperature up to 120 degrees Celsius. Utilizing a mechanical design, it features a clear, analog display for accurate and reliable readings. This gauge is ideal for monitoring the engine's cooling system, helping to prevent overheating and ensuring optimal performance. With its durable construction and precise functionality, the VDO Coolant Temperature Gauge Mechanical 120°C is essential for maintaining engine health and efficiency in automotive and marine applications.
Specification:
- Colour: Black
- Panel hole diameter: 52 mm - 2 1/16"
- Range: +60°C to +200°C
- Operating voltage: 12 Volt DC
- Retail package 1 Temperature gauge
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: |
52 mm - 2 1/16 Inch en 59.25 mm - 2 1/3 Inch |
| Installation depth: |
67.5 mm |
| Locking height with Spinlock nut: |
Not available |
| Locking height with bracket: |
0.5 mm - 8 mm |
| Flushmount: |
None |
Functionality:
| Oil temperature range: |
+60°C to +200°C |
| Sensor signal oil temperature gauge: |
VDO NTC Thermistor 482.5 - 14.3 Ohm |
| Accuracy: |
Not specified by VDO |
| Connection: |
AMP Male blade connector 6,3 x 0,8mm (3x) |
| Illumination connection: |
AMP Male blade connector 6,3 x 0,8mm (2x) |
Power supply:
| Operating voltage: |
11 - 16 Volt DC |
| Current consumption without illumination: |
106 mA |
| Reverse polarity protection: |
Yes |
| Short circuit protection: |
Not specified by VDO |
Dial & Pointer:
| Deflection angle: |
90° |
| Dial colour: |
Black |
| Dial Illumination: |
Floodlight 12V - 3.4 Watt White - Green - Red and 24V - 3 Watt - Optional |
| Pointer: |
Red backlight |
| Warning indication: |
None |
| Programming: |
None |
Design:
| Model: |
Cockpit International |
| Lens: |
Single - Anti-glare |
| Standard bezel: |
Triangular black (Threaded ring) |
Protection and standards:
| Front protection class: |
IP64 (DIN 40050) - Ozon proof - UV proof |
| Rear protection class: |
IP42 (DIN 40050) |
| Relative humidity: |
Not specified by VDO |
| Operating temperature: |
-30°C to +85°C |
| CE standard: |
Yes |
| DNV GL Certification: |
Not specified by VDO |
| Mechanical shock 8 hours: |
Max: 1G - 25Hz - 2000Hz |
| EMC test: |
According to EN 13309 and ISO 13766 |
| Nominal position: |
NL 0 to NL 90 - DIN 16257 |
| Housing: |
Plastic flame retardant |
OEM (10 pieces) package:
- VDO Cockpit International 310 030 004C Temperature gauge
- Steel bracket zinc-plated and chromatized
- Connecting material order separately
