Your premier distributor specializing in automotive accessories. At TAS, we take pride in providing top-quality products like the VDO Ammeter Gauge 60 AMP. Our commitment to excellence ensures that every customer receives not only a reliable product but also exceptional service. Whether you're a car enthusiast, mechanic, or automotive retailer, TAS is your trusted partner for all your automotive gauge needs. Join countless satisfied customers who rely on TAS for precision, durability, and innovation in automotive accessories.

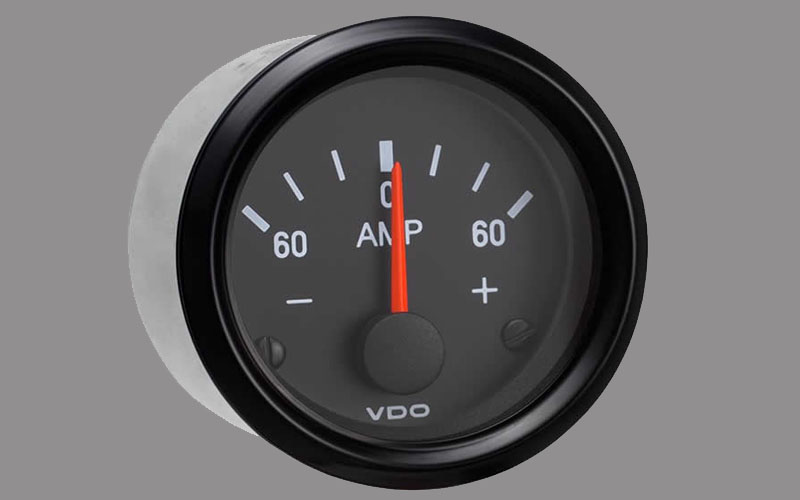

The VDO Ammeter Gauge 60 AMP is a robust and essential instrument designed to monitor electrical currents with precision in automotive and marine environments. Manufactured by VDO, a respected leader in gauge technology, this instrument accurately measures electrical currents up to 60 amps, providing vital insights into the health and performance of electrical systems. Its durable construction ensures reliability even in rugged conditions, making it suitable for a wide range of vehicles and vessels. With a clear and easy-to-read display, the VDO Ammeter Gauge 60 AMP empowers users, from automotive enthusiasts to professionals, to maintain optimal electrical functionality and safety.
Suitable for most engines. Charge and battery condition. Voltage independent – suitable for 12 & 24V Ammeters with internal shunt are easily identified by the heavy duty threaded terminals. Heavy duty wire must be used for wiring. Illumination globe holder included. For 24V application use globe 999-065-002 For 12V application use globe 999-065-001
| Installation (Hole) diameter and Outside diameter: | 52 mm - 2 1/16 Inch en 59.25 mm - 2 1/3 Inch |
| Installation depth: | 67.5 mm |
| Locking height with Spinlock nut: | Not available |
| Locking height with bracket: | 0.5 mm - 8 mm |
| Flushmount: | None |
| Ampere measurement range: | -60A to +60A DC |
| Shunt: | Not applicable |
| Signal input ammeter gauge: | -60A to +60A DC |
| Accuracy: | Not specified by VDO |
| Connection: | M5 hexnut |
| Illumination connection: | AMP Male blade connector 6,3 x 0,8mm (2x) |
| Operating voltage (Illumination only): | 12 Volt standard - 24 Volt optional |
| Current consumption (Illumination only): | 12 Volt 2 Watt - 24 Volt 2 Watt |
| Reverse polarity protection: | Not applicable |
| Short circuit protection: | Not applicable |
| Deflection angle: | 320° |
| Dial colour: | Black |
| Dial Illumination: | Floodlight 12V - 2 Watt White - Green - Red and 24V - 2 Watt - Optional |
| Pointer: | Red backlight |
| Warning indication: | None |
| Programming: | None |
| Model: | Cockpit International |
| Lens: | Single - Anti-glare |
| Standard bezel: | Triangular black (Threaded ring) |
| Front protection class: | IP64 (DIN 40050) - Ozon proof - UV proof |
| Rear protection class: | IP42 (DIN 40050) |
| Relative humidity: | Not specified by VDO |
| Operating temperature: | -30°C to +85°C |
| CE standard: | Yes |
| DNV GL Certification: | Not specified by VDO |
| Mechanical shock 8 hours: | Max: 1G - 25Hz - 2000Hz |
| EMC test: | According to EN 13309 and ISO 13766 |
| Nominal position: | NL 0 to NL 90 - DIN 16257 |
| Housing: | Plastic flame retardant |
Categories: Ammeter Gauges
Condition: New
Brand: VDO
