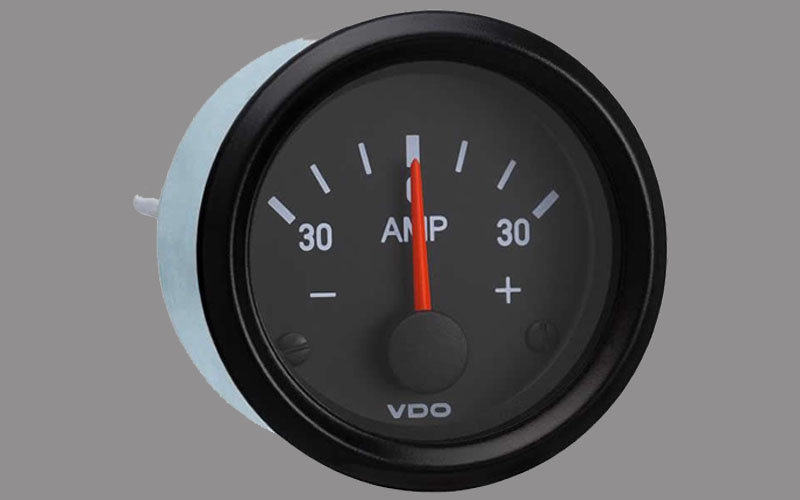

The VDO Ammeter Gauge 30 AMP is a reliable and essential component for monitoring electrical currents in automotive applications. Designed by VDO, a renowned manufacturer known for precision instruments, this gauge provides accurate readings of electrical currents up to 30 amps. It features a clear and easy-to-read display, ensuring drivers and mechanics can monitor the health of their vehicle's electrical system with confidence. Whether used in classic cars, trucks, or modern vehicles, the VDO Ammeter Gauge 30 AMP is trusted for its durability, accuracy, and ability to withstand demanding conditions on the road.
Suitable for most engines. Charge and battery condition. Voltage independent – suitable for 12 & 24V Ammeters with internal shunt are easily identified by the heavy duty threaded terminals. Heavy duty wire must be used for wiring. Illumination globe holder included. For 24V application use globe 999-065-002 For 12V application use globe 999-065-001
| Installation (Hole) diameter and Outside diameter: | 52 mm - 2 1/16 Inch en 59.25 mm - 2 1/3 Inch |
| Installation depth: | 67.5 mm |
| Locking height with Spinlock nut: | Not available |
| Locking height with bracket: | 0.5 mm - 8 mm |
| Flushmount: | None |
| Ampere measurement range: | -30A to +30A DC |
| Shunt: | Not applicable |
| Signal input ammeter gauge: | -30A to +30A DC |
| Accuracy: | Not specified by VDO |
| Connection: | M5 hexnut |
| Illumination connection: | AMP Male blade connector 6,3 x 0,8mm (2x) |
| Operating voltage (Illumination only): | 12 Volt standard - 24 Volt optional |
| Current consumption (Illumination only): | 12 Volt 2 Watt - 24 Volt 2 Watt |
| Reverse polarity protection: | Not applicable |
| Short circuit protection: | Not applicable |
| Deflection angle: | 320° |
| Dial colour: | Black |
| Dial Illumination: | (Optional) Floodlight 12V - 2 Watt White - Green - Red or 24V - 2 Watt |
| Pointer: | Red backlight |
| Warning indication: | None |
| Programming: | None |
| Model: | Cockpit International |
| Lens: | Single - Anti-glare |
| Standard bezel: | Triangular black (Threaded ring) |
| Front protection class: | IP64 (DIN 40050) - Ozon proof - UV proof |
| Rear protection class: | IP42 (DIN 40050) |
| Relative humidity: | Not specified by VDO |
| Operating temperature: | -30°C to +85°C |
| CE standard: | Yes |
| DNV GL Certification: | Not specified by VDO |
| Mechanical shock 8 hours: | Max: 1G - 25Hz - 2000Hz |
| EMC test: | According to EN 13309 and ISO 13766 |
| Nominal position: | NL 0 to NL 90 - DIN 16257 |
| Housing: | Plastic flame retardant |
Categories: Ammeter Gauges
Condition: New
Brand: VDO
